FlyingRC AM32 ESC 75A V2.5 Single Metal-sealed ESC
A 75 A single-channel AM32 ESC for one high-current brushless motor. It is useful when each motor needs its own ESC or when a single powerful motor is used.
Best used for
- High-current fixed-wing or vehicle motors.
- Users who need one ESC per motor rather than a 4-in-1 board.
- AM32 setups requiring configurable braking, startup, and protection behavior.
Key features
- AM32 firmware with sinusoidal startup and stall protection.
- Designed for strong low-speed torque when configured appropriately.
- Manual documents firmware and parameter update workflow.
Setup / wiring notes
- Remove propellers before ESC parameter tuning or firmware flashing.
- Power the ESC with a LiPo battery when tuning/flashing, following the ESC manual.
- Use the offline AM32 parameter tuning workflow; the manuals warn against web-based firmware flashing.
Check before use
- Incorrect firmware flashing can damage the ESC MCU; use the manual workflow.
Key specs
- AM32 single-channel ESC
- 75 A class for one high-current brushless motor
- 7-28 V DC / 2-6S LiPo input range
Downloads

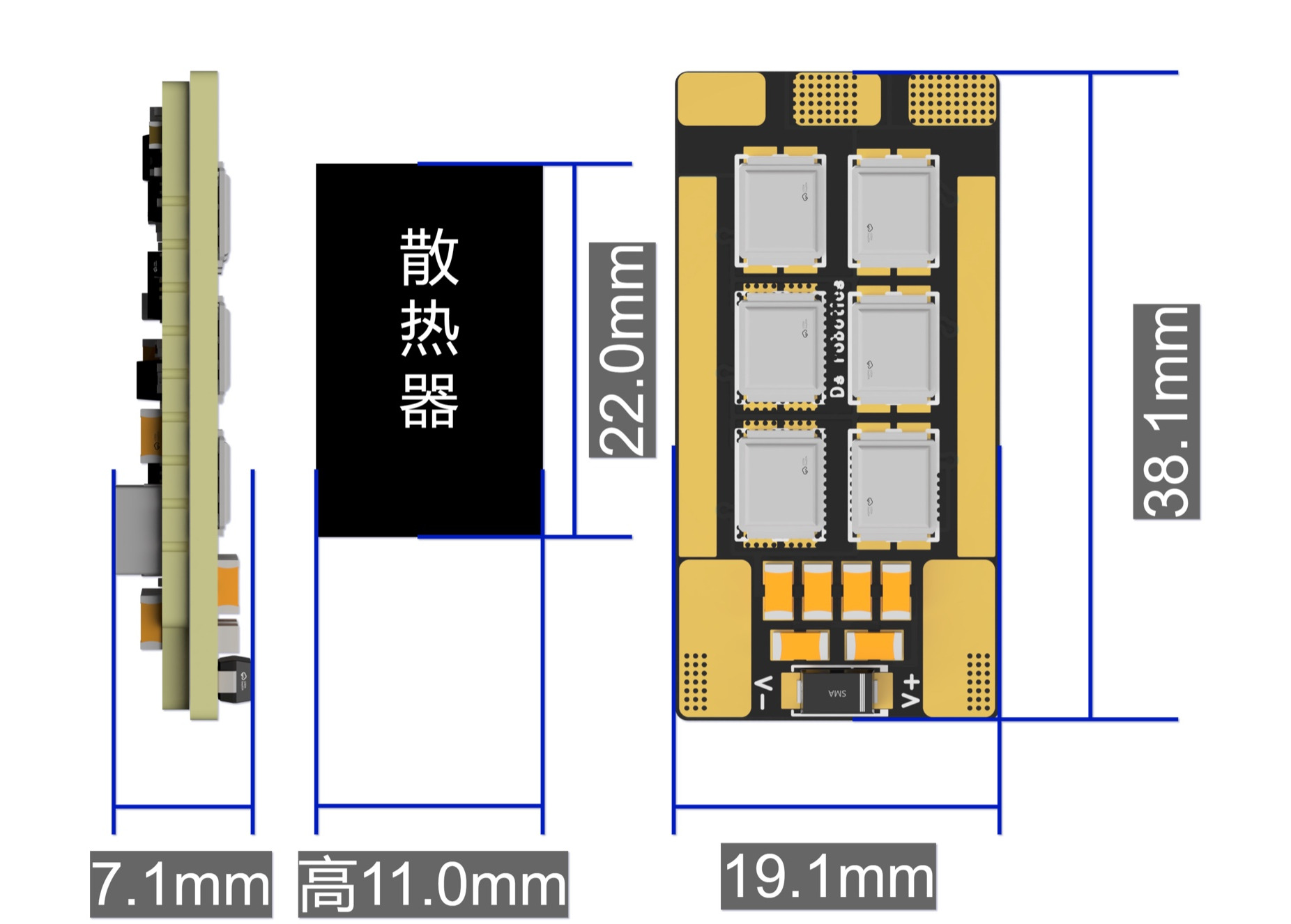

Wiring / dimensions / specs
