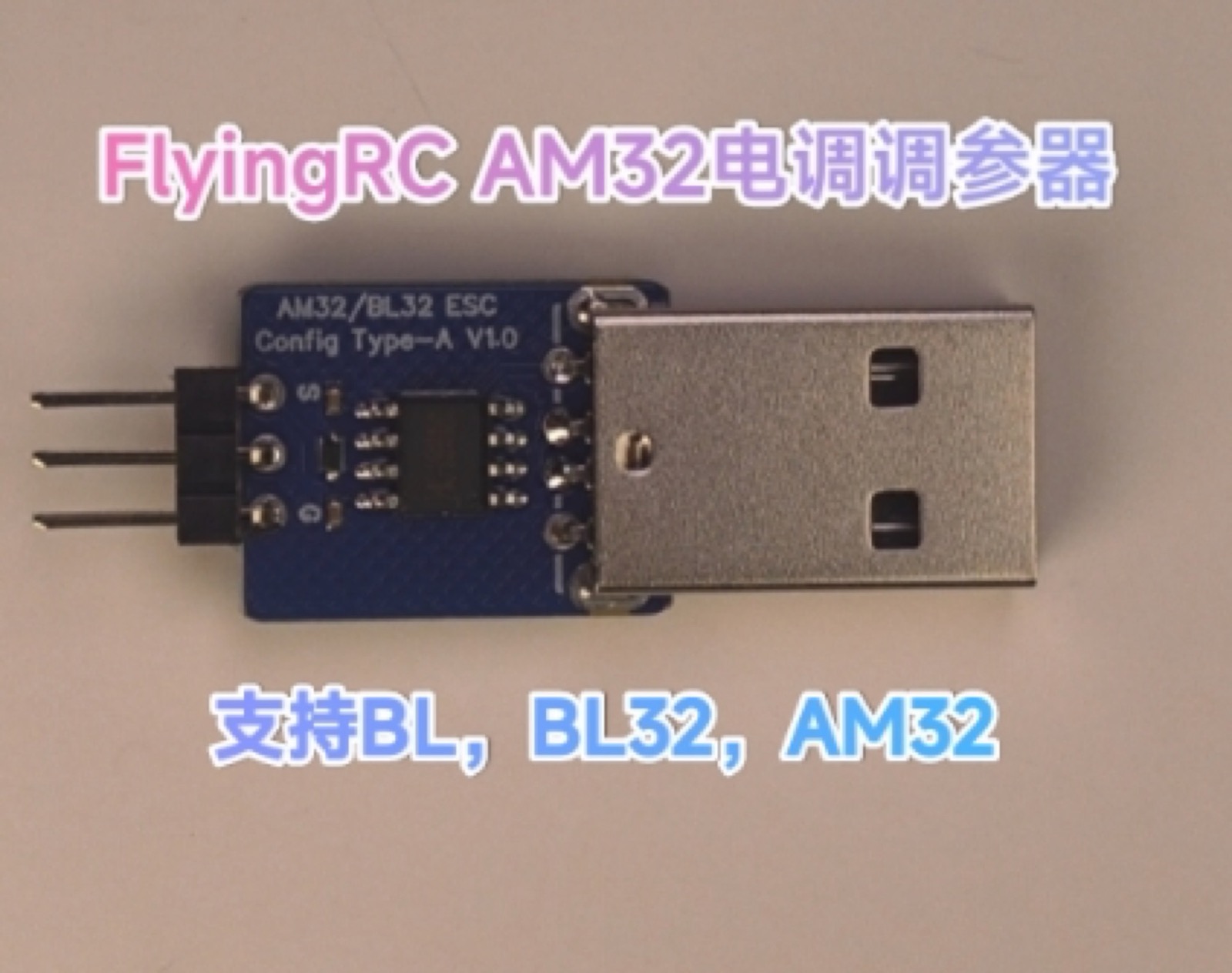

FlyingRC AM32 ESC Configurator Tool
A USB parameter programmer for AM32 ESCs. It bridges the computer tuning software to an ESC signal wire so users can read parameters, change settings, and flash firmware.
Best used for
- Users tuning AM32 ESCs without routing through a flight controller.
- Firmware update and parameter adjustment workbench use.
- Troubleshooting ESC settings before installing into an aircraft.
Key features
- Connects to the computer by USB and to the ESC signal wire.
- Manual documents M1 port selection, parameter reading, writing, and firmware flashing workflow.
- Supports AM32 ESC tuning use cases.
Setup / wiring notes

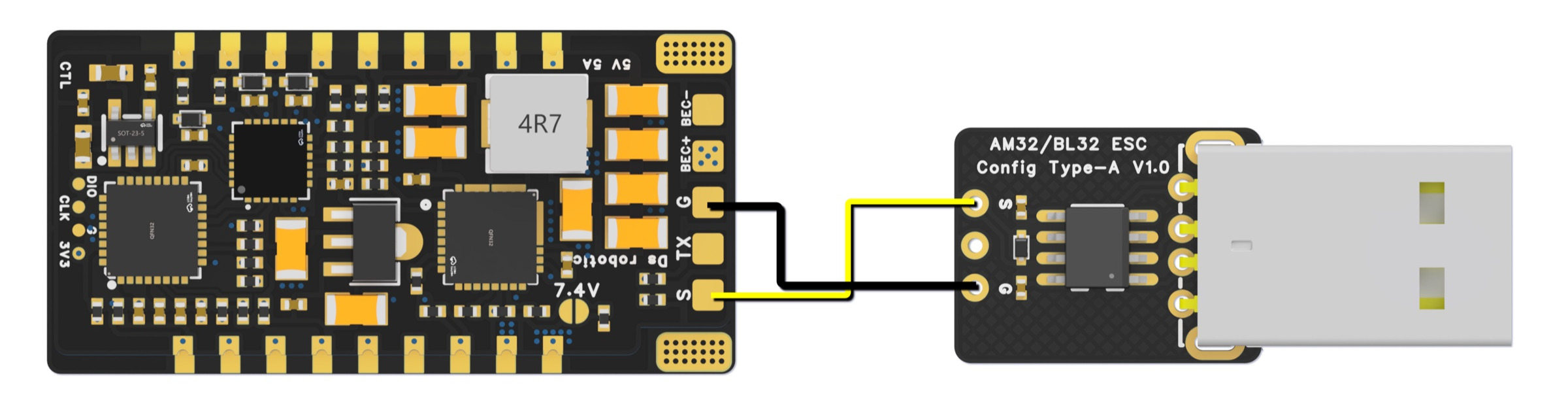

- Connect USB first, then connect the programmer signal wire to the ESC signal wire as shown in the diagram.
- Power the ESC appropriately when tuning or flashing according to the ESC manual.
- After flashing across multiple versions, send default settings if the manual workflow calls for it.
Check before use
- Web flashing has damaged ESC MCUs according to the manual; use the offline workflow.
Key specs
- USB programmer for AM32 ESCs
- Connects computer tuning software to the ESC signal wire
- Offline firmware flashing workflow recommended
Downloads

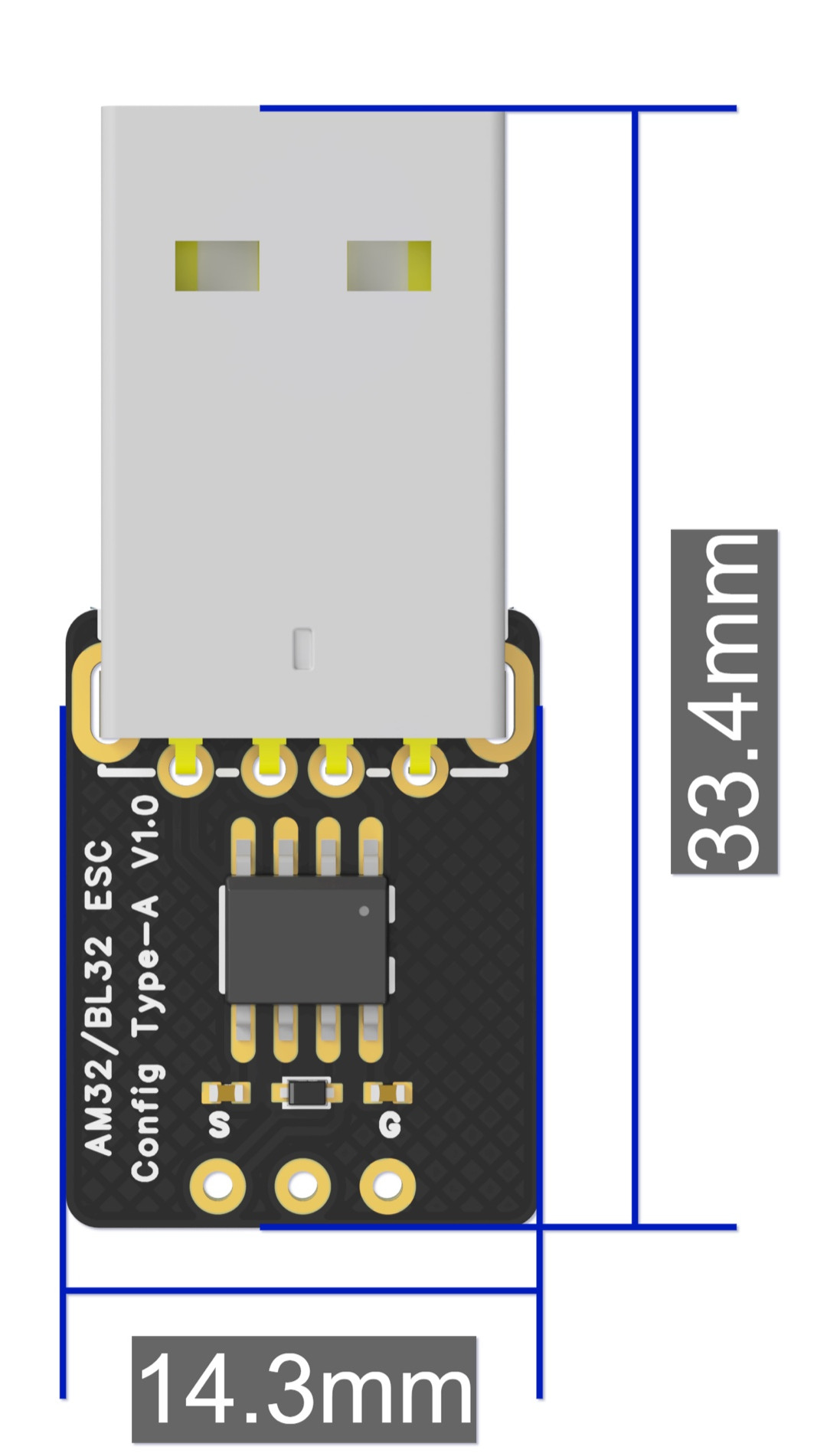

Wiring / dimensions / specs
