FlyingRC AM32 Dual ESC 40A Two-in-one ESC
A two-in-one AM32 ESC that drives two brushless motors from one compact board. It is especially useful for twin-motor fixed-wing aircraft or compact dual-motor builds.
Best used for
- Twin-motor fixed-wing aircraft.
- Dual-motor robotics or vehicle builds.
- Builds that want fewer separate ESC boards and cleaner wiring.
Key features
- Pre-flashed with AM32 firmware.
- Dual-stage LDO power supply for gate drivers and MCUs.
- Supports wide 2-6S input range according to the manual.
- Sine-wave startup and Stall Protection can improve low-speed torque.
Setup / wiring notes
- Remove propellers before ESC parameter tuning or firmware flashing.
- Power the ESC with a LiPo battery when tuning/flashing, following the ESC manual.
- Use the offline AM32 parameter tuning workflow; the manuals warn against web-based firmware flashing.
Check before use
- Incorrect firmware flashing can damage the ESC MCU; use the manual workflow.

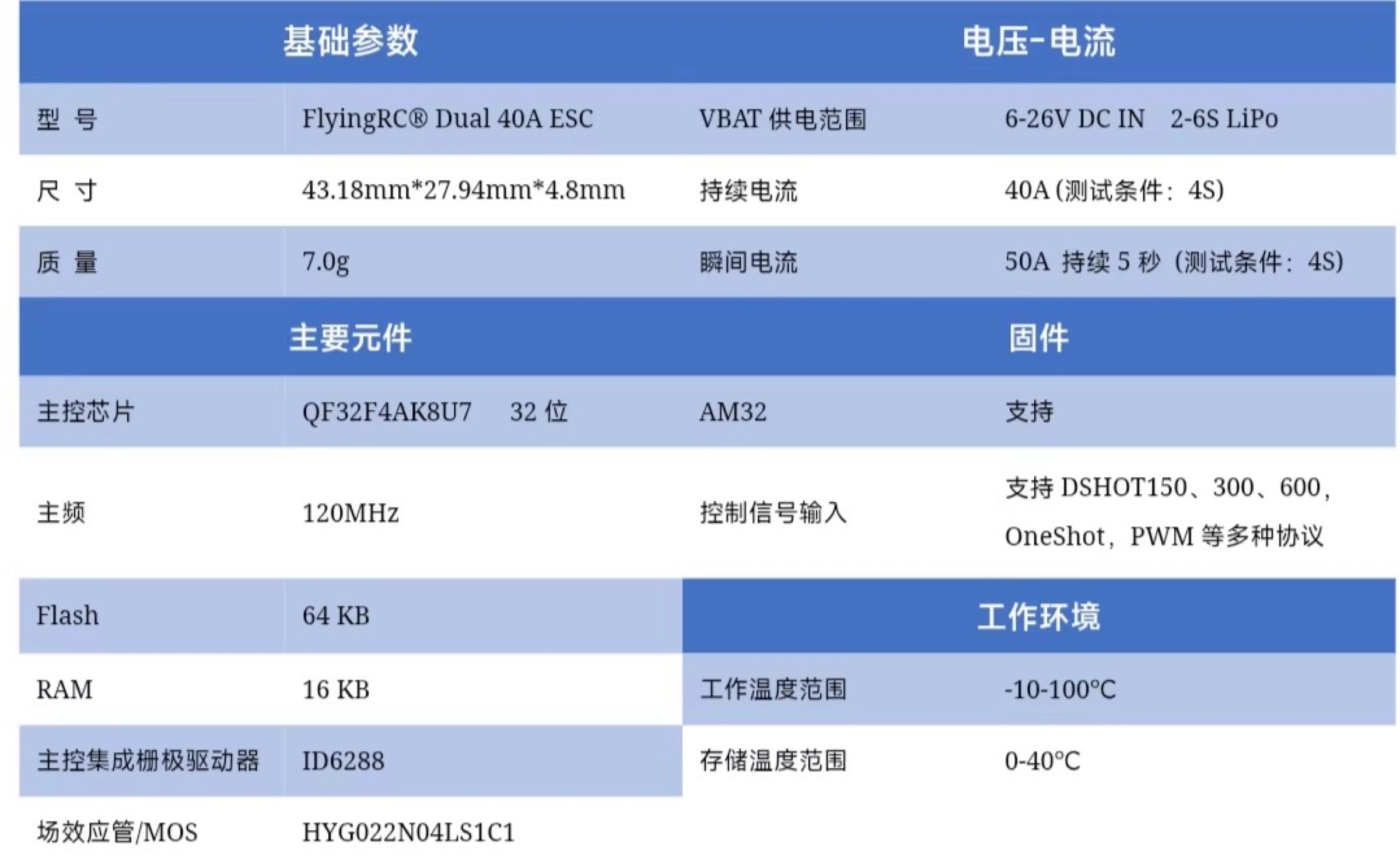

Key specs
- AM32 two-in-one ESC
- 40 A dual-motor class
- 2-6S LiPo input range
Downloads

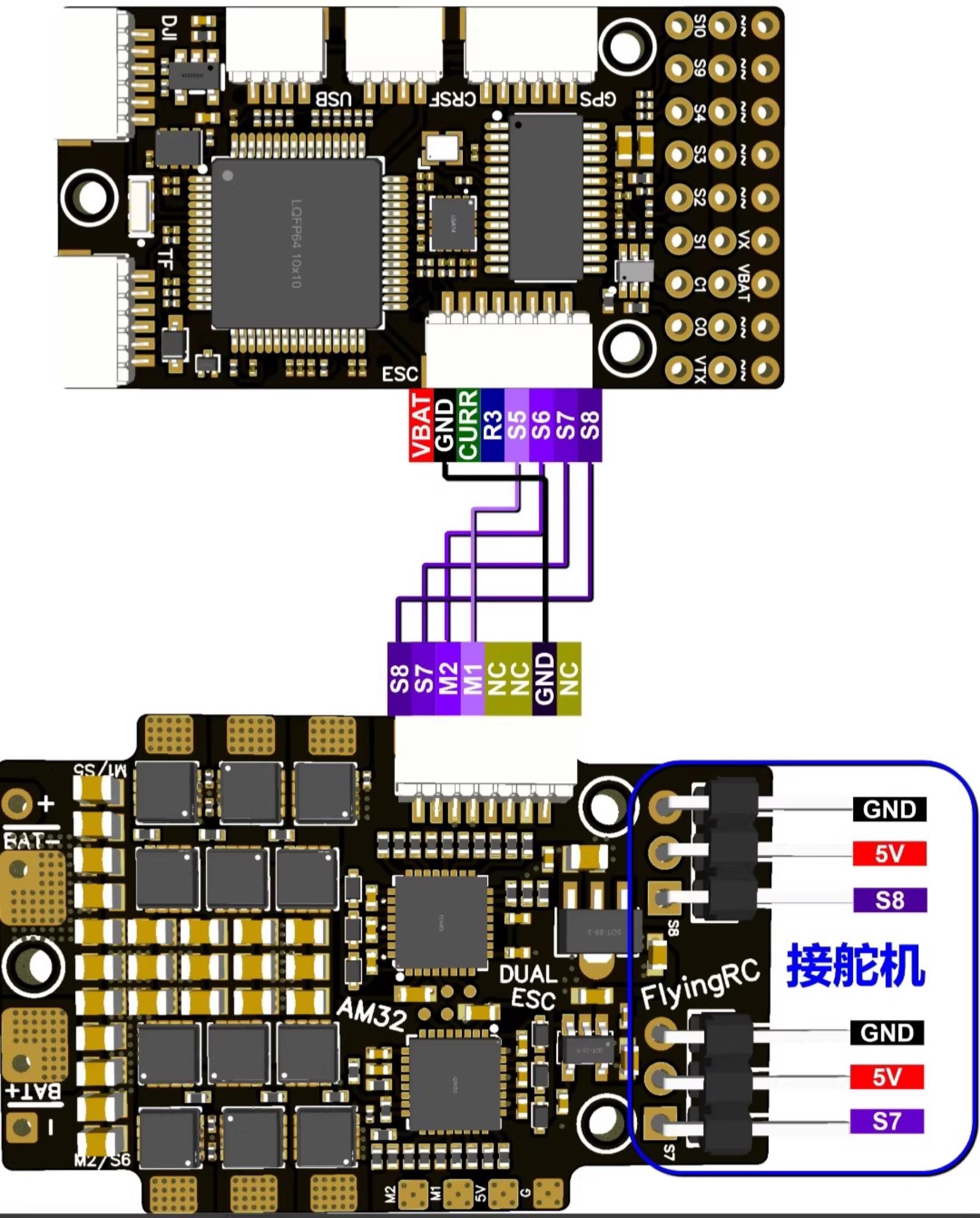

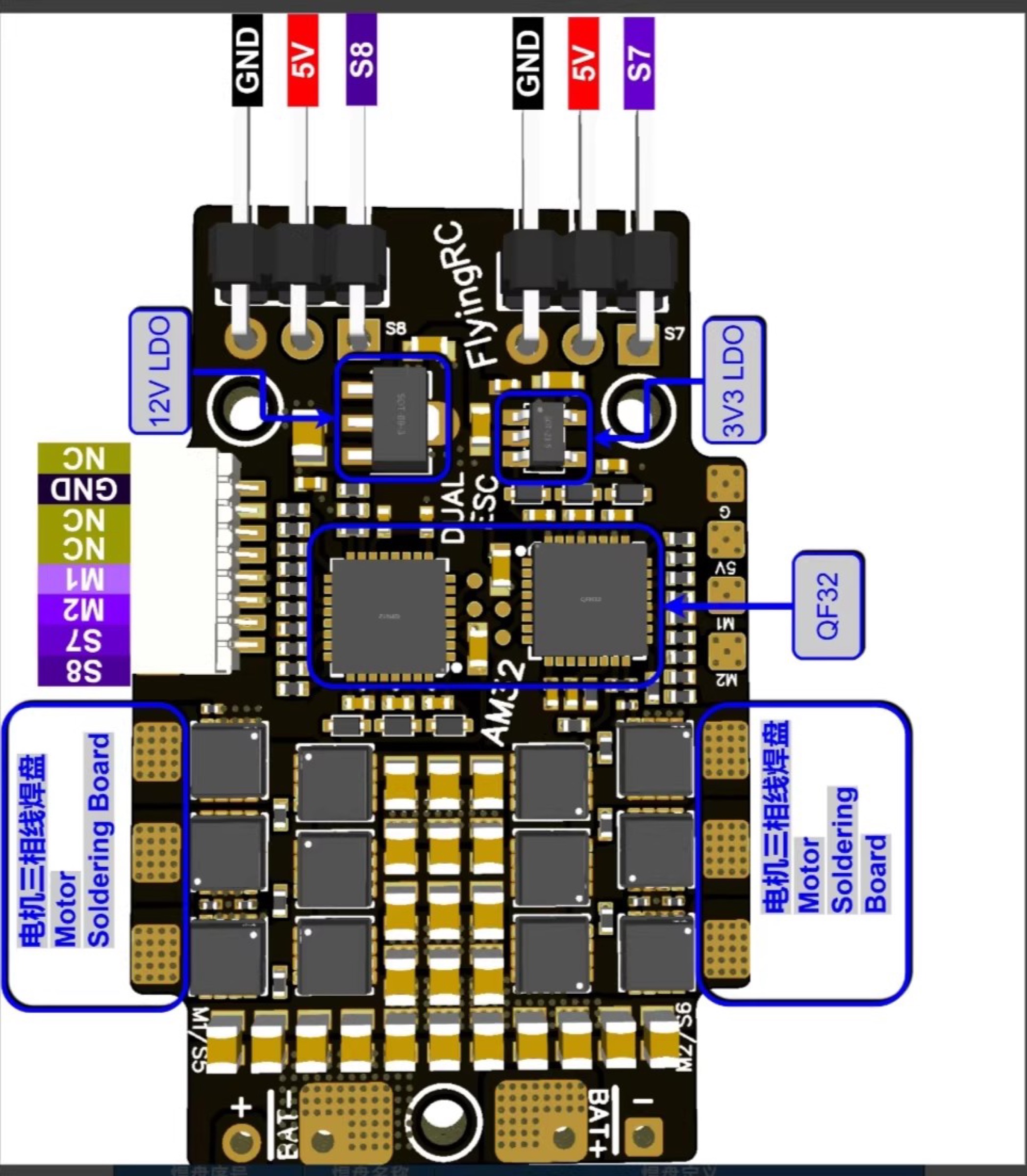

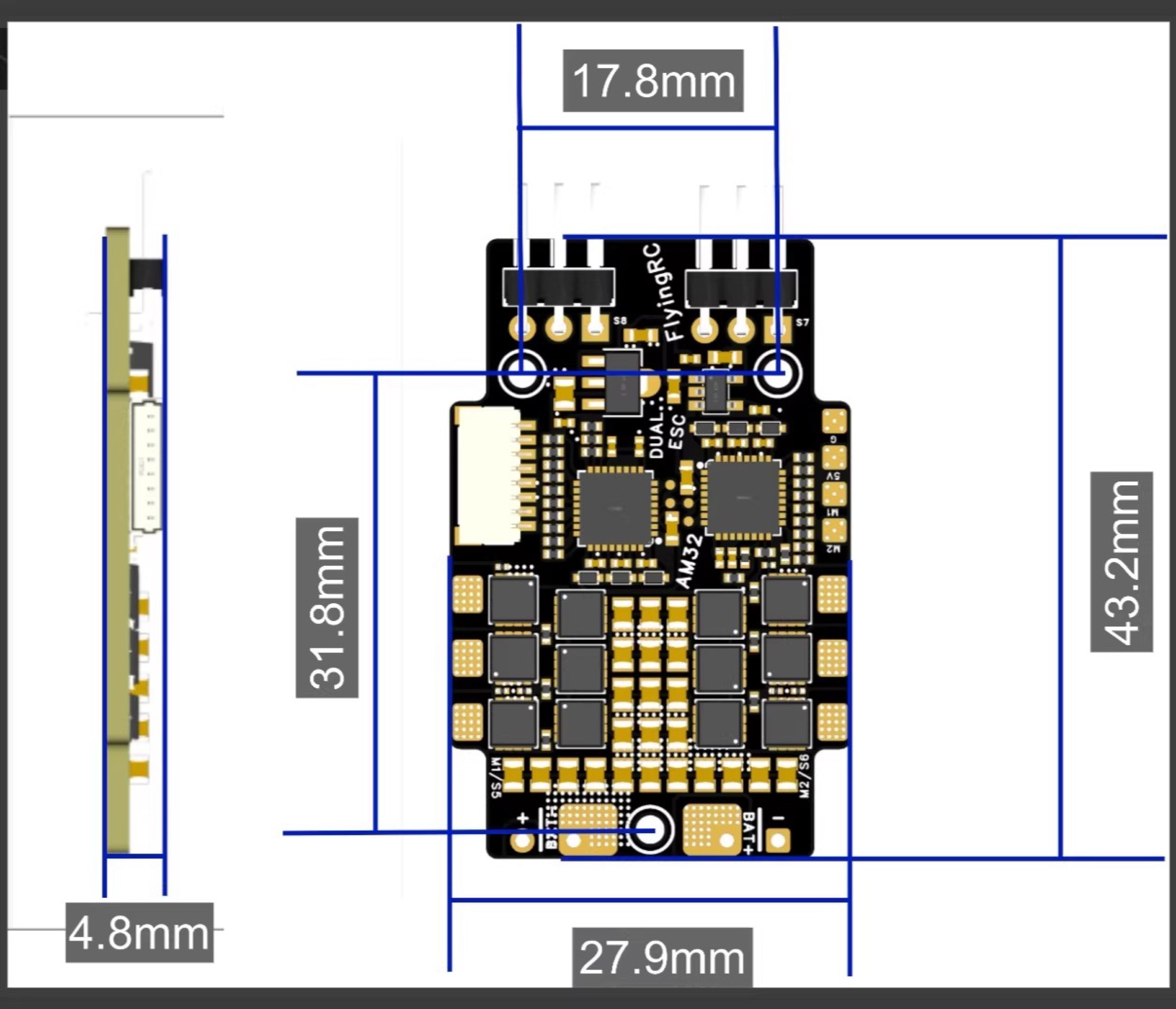

Wiring / dimensions / specs
