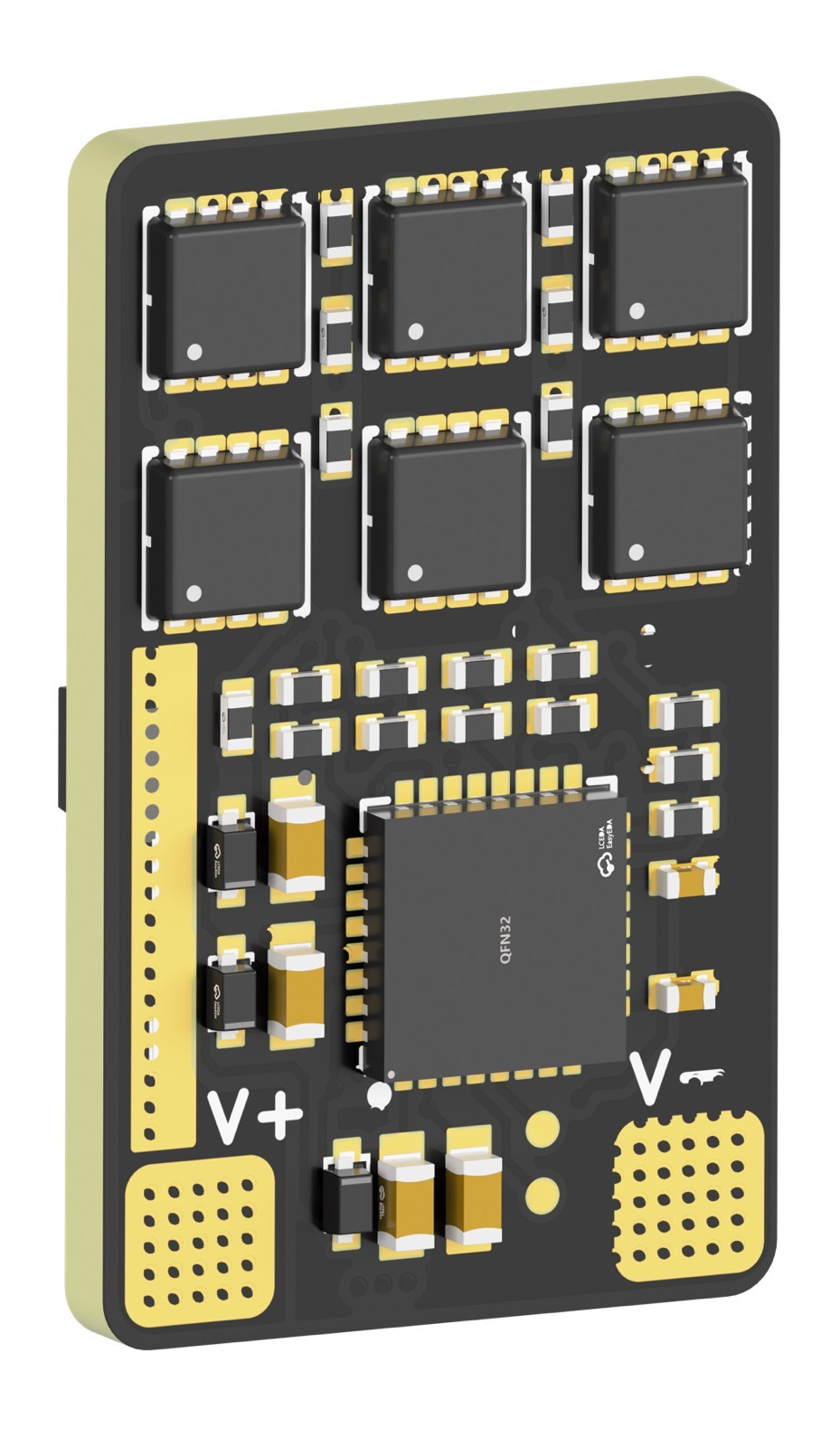

FlyingRC AM32 Mini ESC 40A V1 Single ESC
A compact single-channel AM32 ESC. It drives one brushless motor, making it useful for single-motor fixed-wing aircraft, compact vehicles, or builds where separate ESC placement is preferred.
Best used for
- Single-motor fixed-wing aircraft.
- Mini RC cars, crawlers, and compact robotics where AM32 low-speed behavior is useful.
- Builds where one ESC per motor is preferred instead of a 4-in-1 board.
Key features
- Pre-flashed with AM32 firmware.
- Sine-wave startup and Stall Protection can provide strong low-speed torque.
- Manual includes offline firmware flashing and parameter setting workflow.
Setup / wiring notes
- Remove propellers before ESC parameter tuning or firmware flashing.
- Power the ESC with a LiPo battery when tuning/flashing, following the ESC manual.
- Use the offline AM32 parameter tuning workflow; the manuals warn against web-based firmware flashing.
Check before use
- Incorrect firmware flashing can damage the ESC MCU; use the manual workflow.
Key specs
- AM32 single-channel ESC
- 40 A class for one brushless motor
- 6-30 V / 2-6S LiPo input range
Downloads
Wiring / dimensions / specs
