FlyingRC 10A 12S BEC Step-down Module
A higher-voltage step-down BEC for converting 2-12S battery voltage into a regulated lower output for onboard electronics.
Best used for
- Large aircraft or FPV power systems using up to 12S batteries.
- Builds that need a stronger external BEC than small 5 A modules.
- Users powering accessories from a high-voltage main battery.
Key features
- Step-down module for 2-12S LiPo systems.

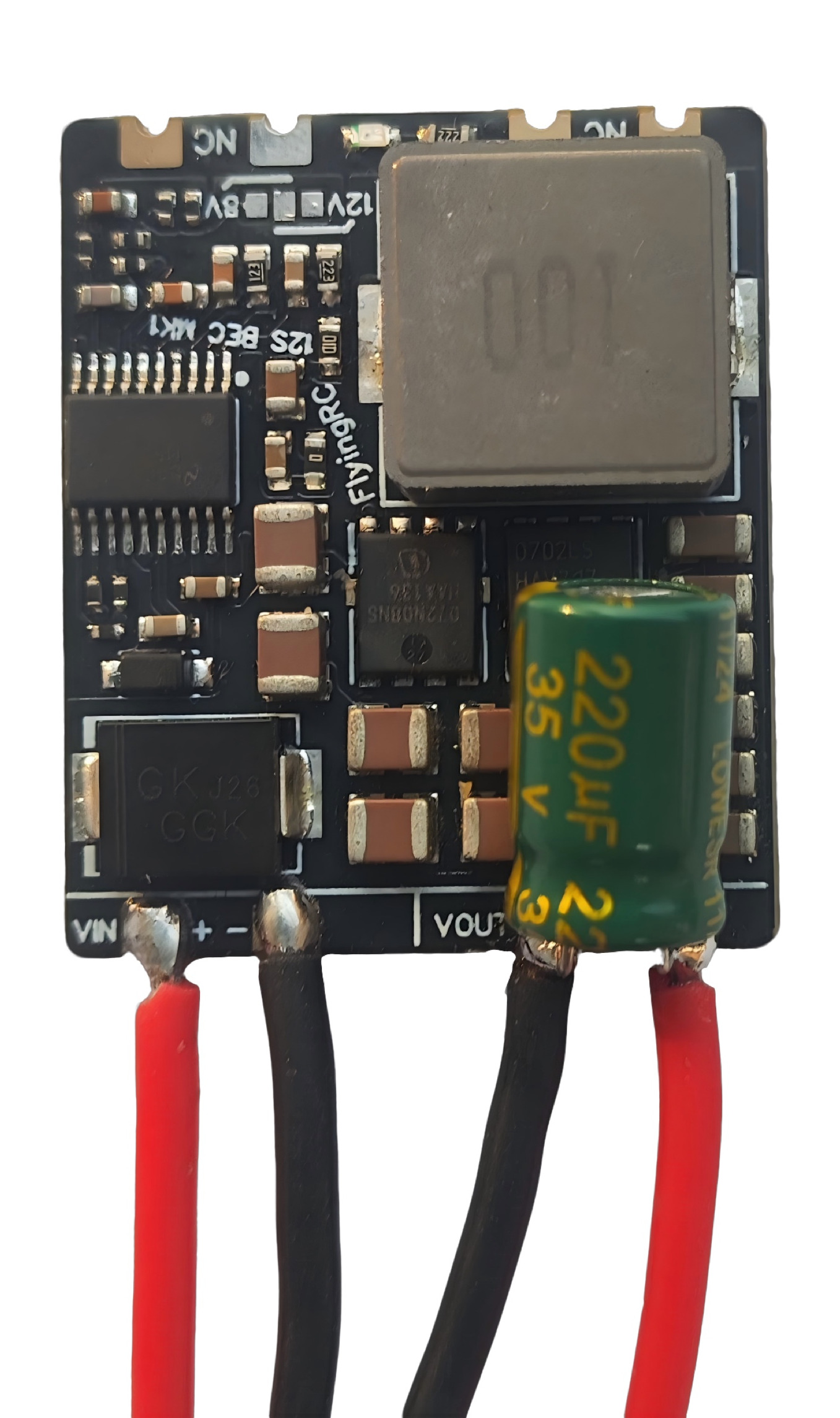

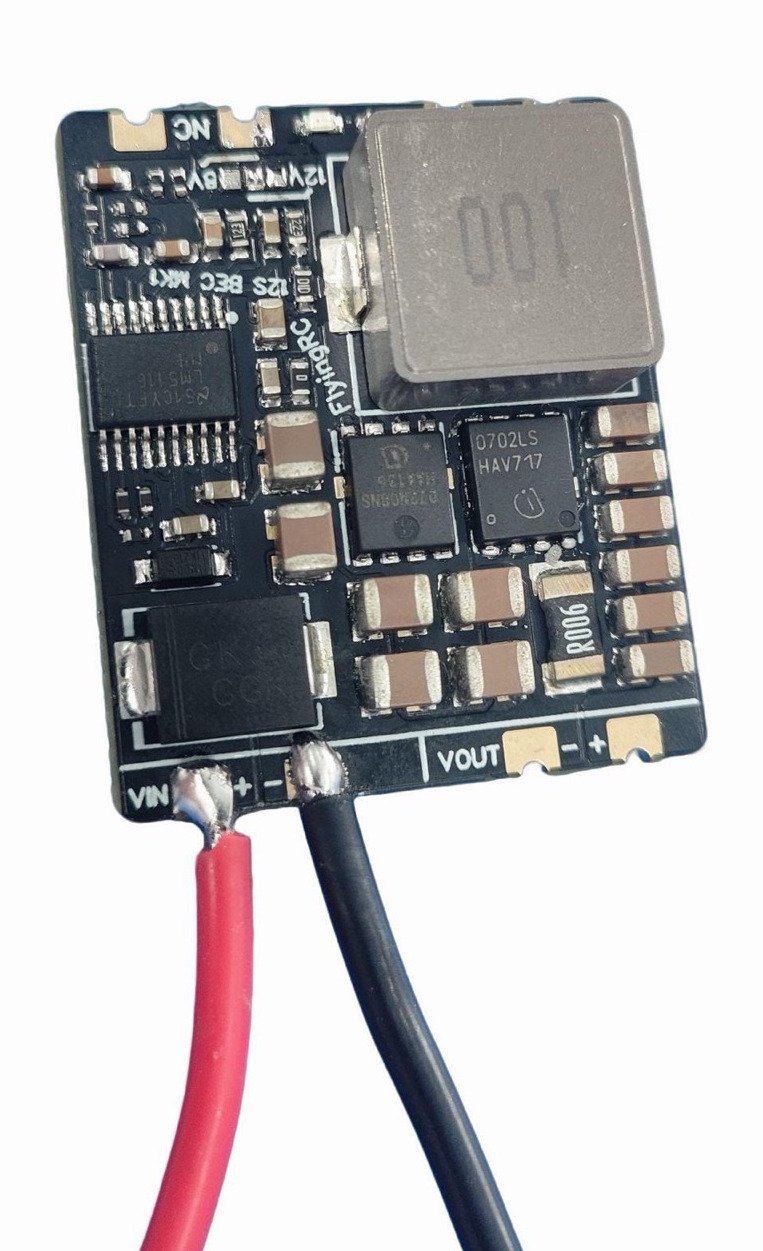

- Manual lists capacitor and battery wiring workflow.
- Designed for higher-current accessory power than small BEC modules.
Setup / wiring notes
- Confirm output voltage and polarity before connecting flight electronics.
- Keep high-voltage battery wiring physically separated from signal wiring where possible.
Check before use
- High-voltage batteries can destroy low-voltage electronics if wired incorrectly.
Key specs
- 10 A step-down BEC module
- 6-60 V / 2-12S LiPo input range
- Designed for higher-current accessory power
Downloads

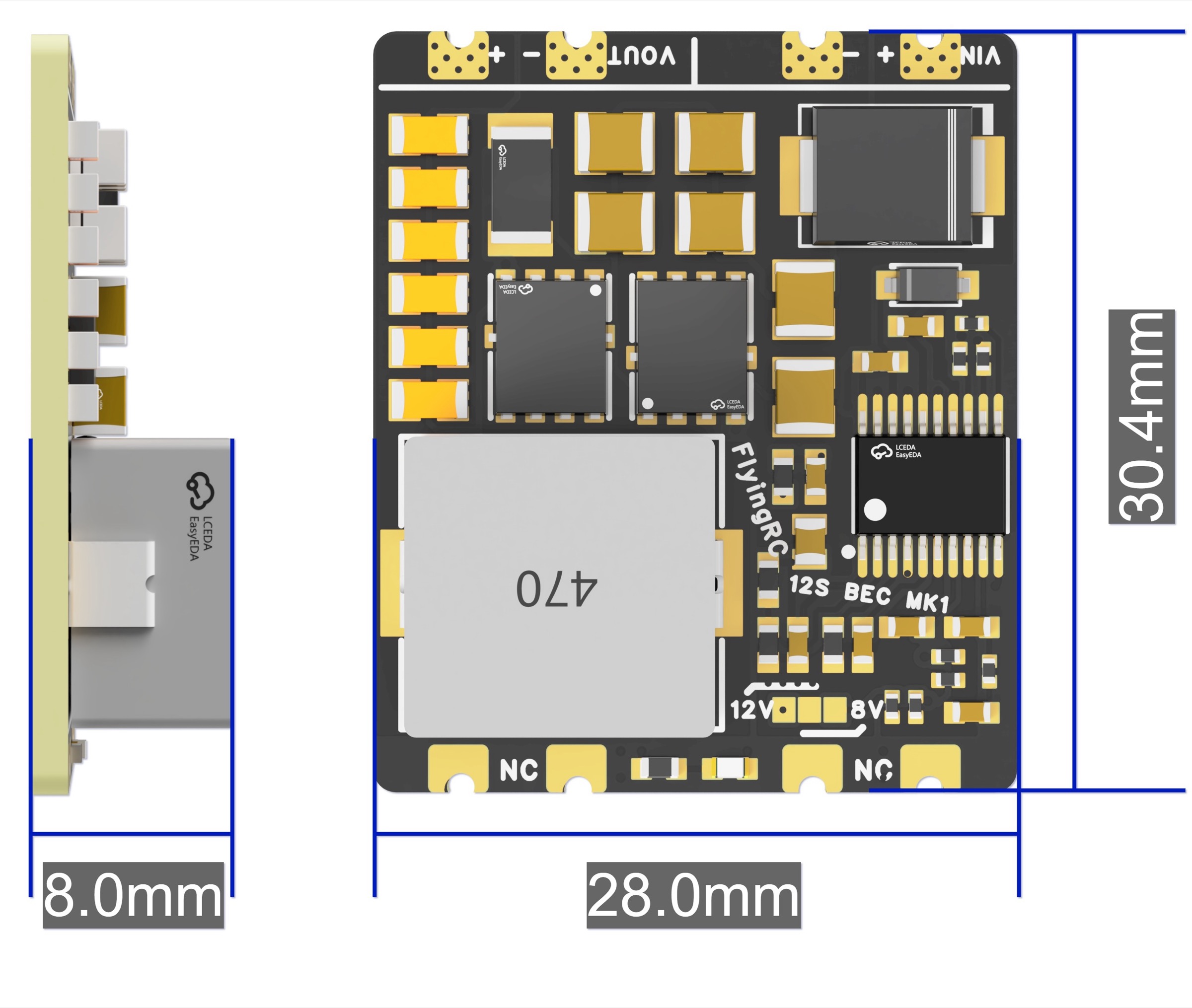

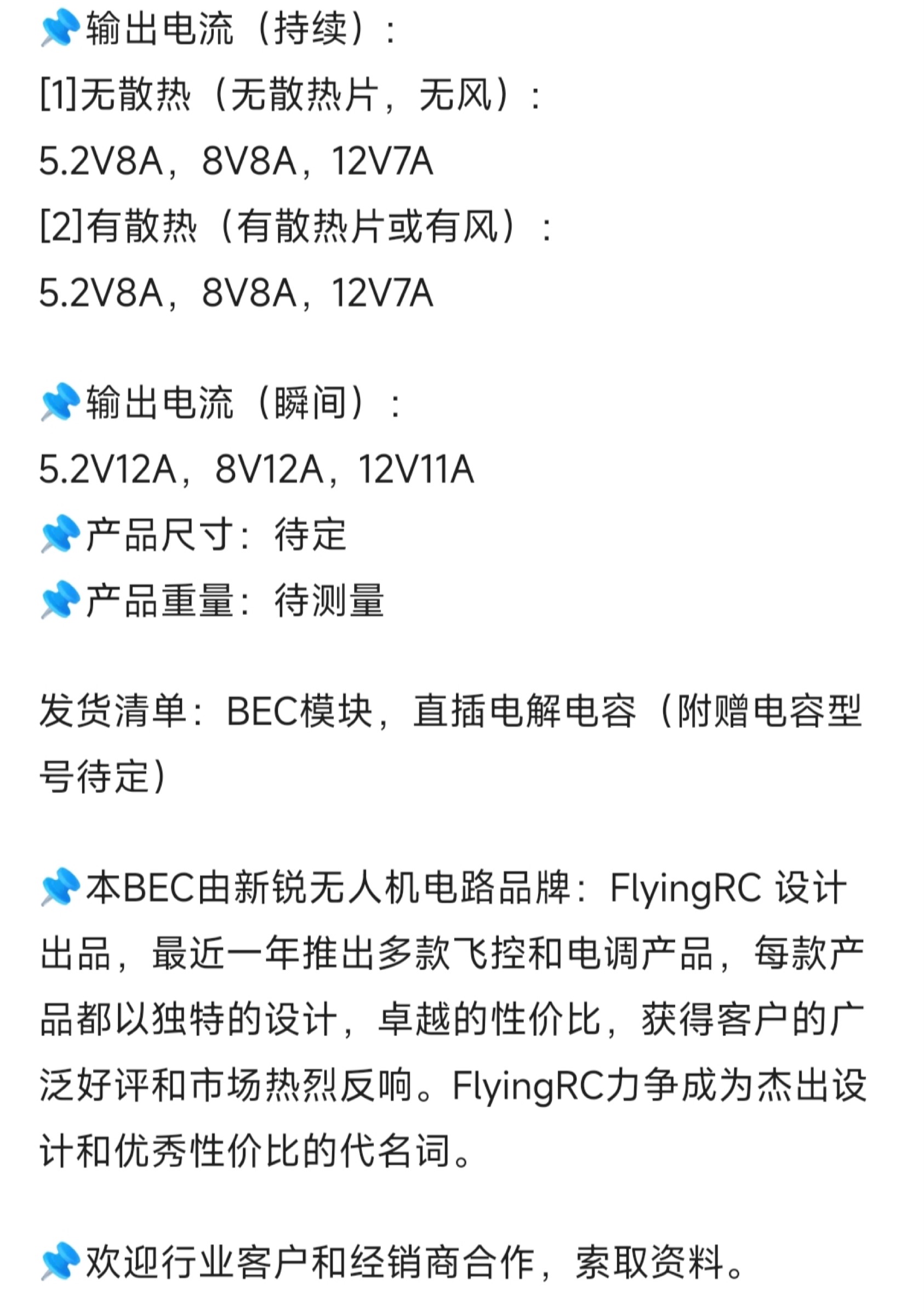

Wiring / dimensions / specs
