FlyingRC 10A 8S BEC V1 Step-down Module
A compact high-current BEC for aircraft and other projects that need a selectable regulated supply.
Key features
- Uses an LM61495 regulator and current-mode control.
- Select 5 V, 6 V, or 7 V using the output jumper pads.

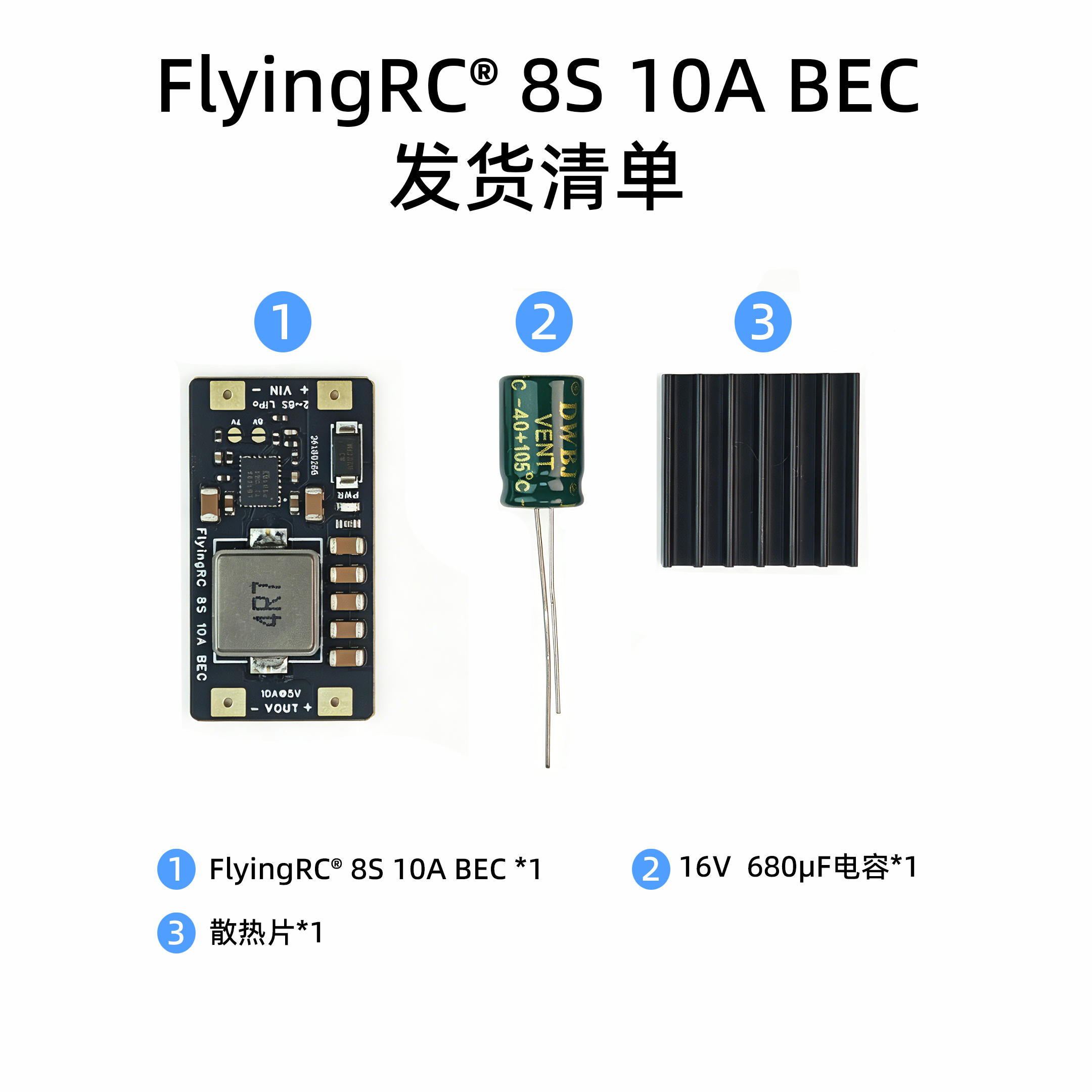

- The package includes a 16 V 680 uF capacitor and a heatsink.

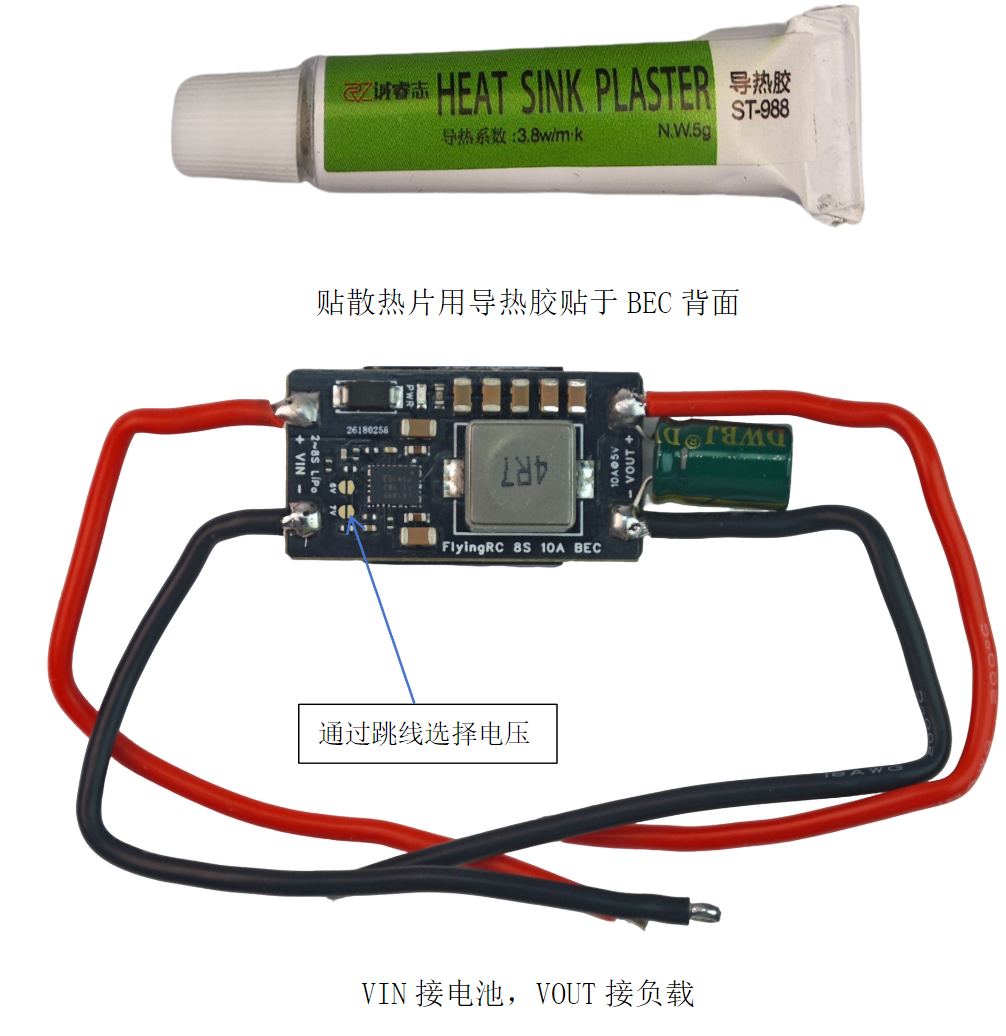

Setup / wiring notes
- Connect the battery to VIN and the load to VOUT.
- Attach the heatsink to the reverse side before sustained high-current use.
Check before use
- Input voltage must remain at least 0.8 V above the selected output voltage.

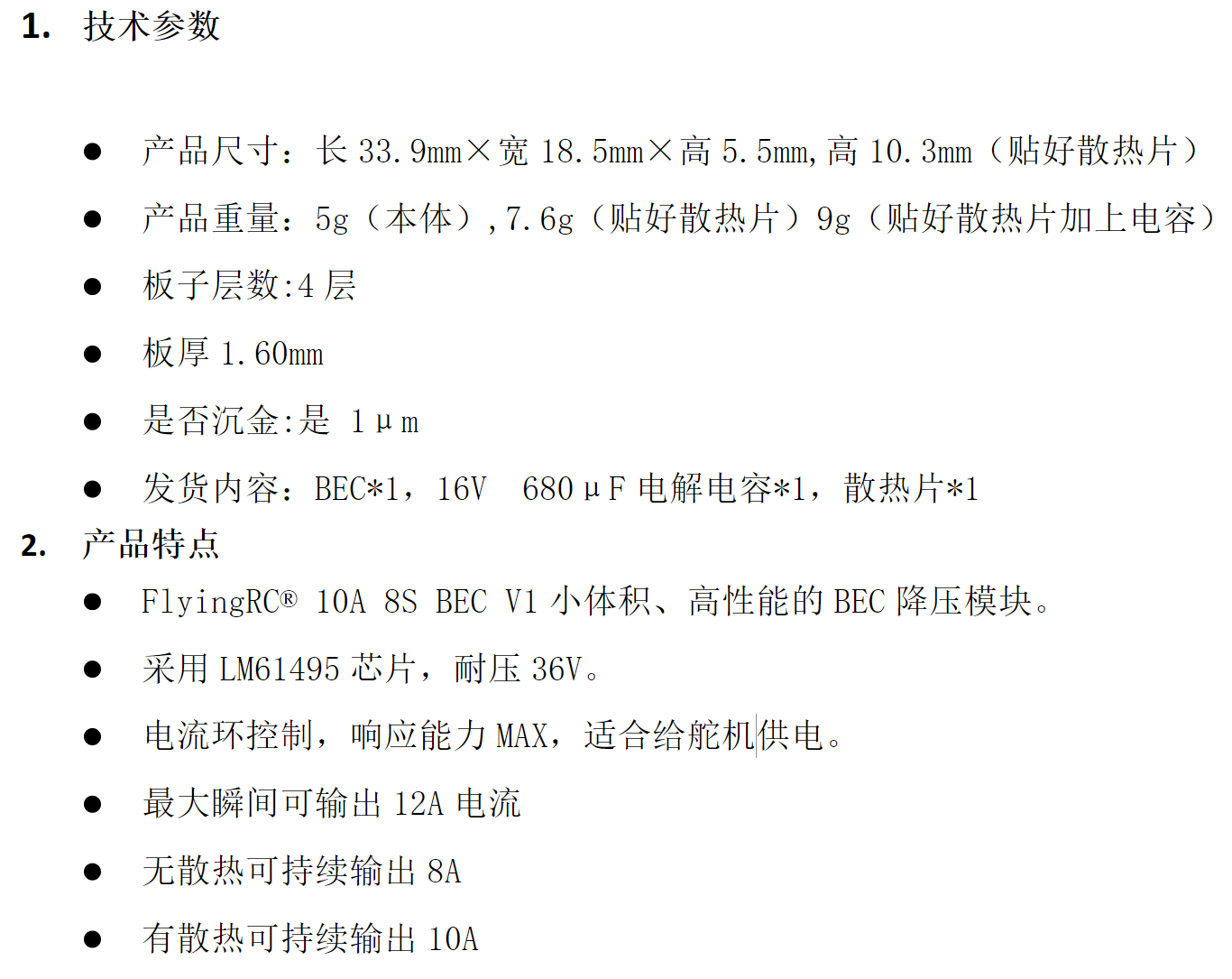

Key specs
- 6-36 V input; 2-8S LiPo
- 5 V default output; 6 V / 7 V selectable by jumper
- 10 A continuous with heatsink or airflow; 12 A peak at 5 V

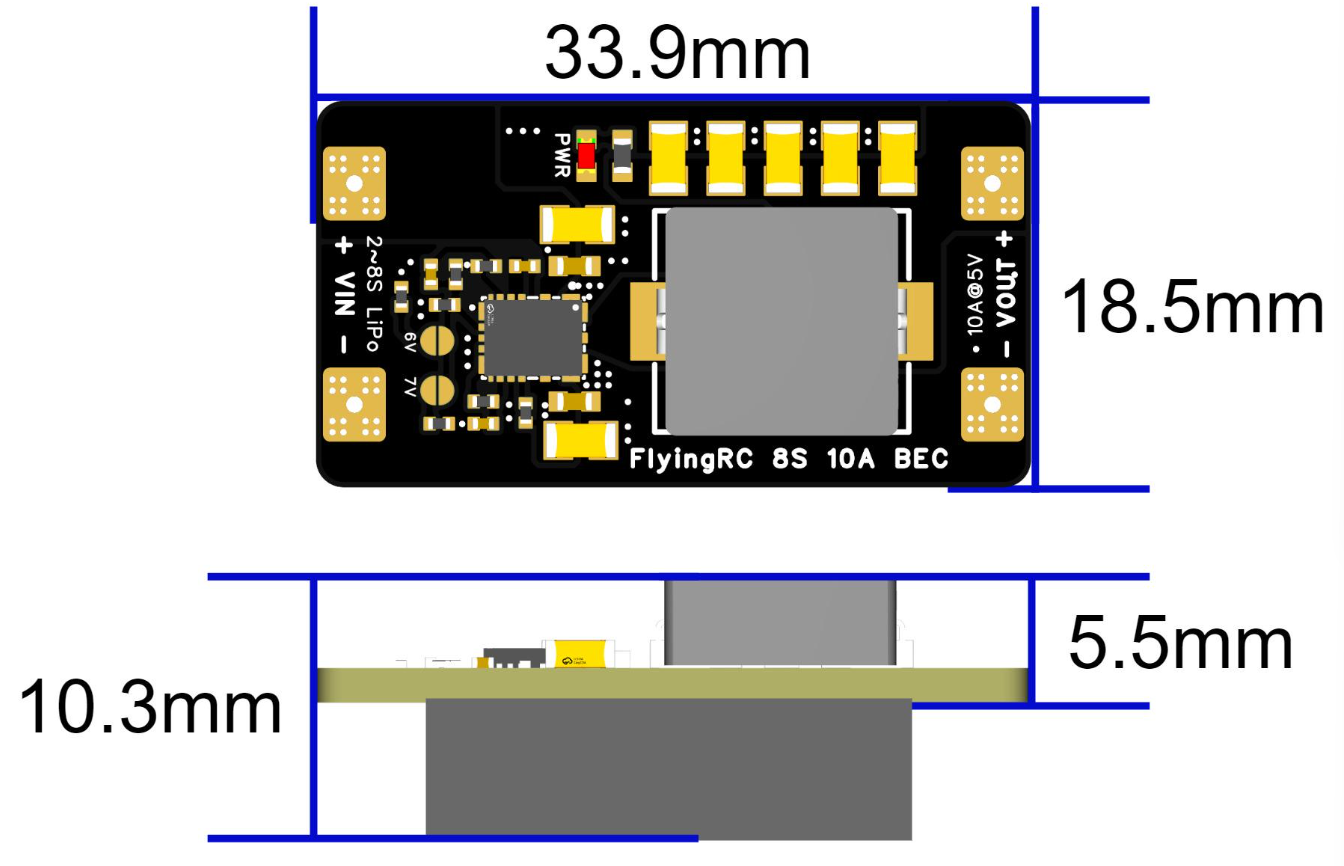

- 33.9 x 18.5 x 5.5 mm; 10.3 mm with heatsink
Downloads
Wiring / dimensions / specs
