FlyingRC F4WSE F405 Fixed-wing Flight Controller
A fixed-wing F405 autopilot board for ArduPilot/INAV-style airplane builds. It sits between receiver/sensors and aircraft servos/ESC, handling stabilization, navigation, telemetry, and flight-mode control.
Best used for
- Fixed-wing aircraft needing a mature F405-class controller.
- Users who want fixed-wing firmware support without moving to a larger H7 board.
- Builds where wiring diagrams and ArduPilot serial mapping matter.
Key features
- F405 fixed-wing controller family.
- Manual materials include technical parameters, product features, firmware use, and wiring sections.
- Designed around open-source flight firmware workflows.
Setup / wiring notes
- Start with the fixed-wing firmware recommended in the manual, then verify receiver, GPS, telemetry, PWM outputs, and power before motor testing.
Check before use
- ArduPilot SERIAL numbers do not always match the printed UART/USART names.

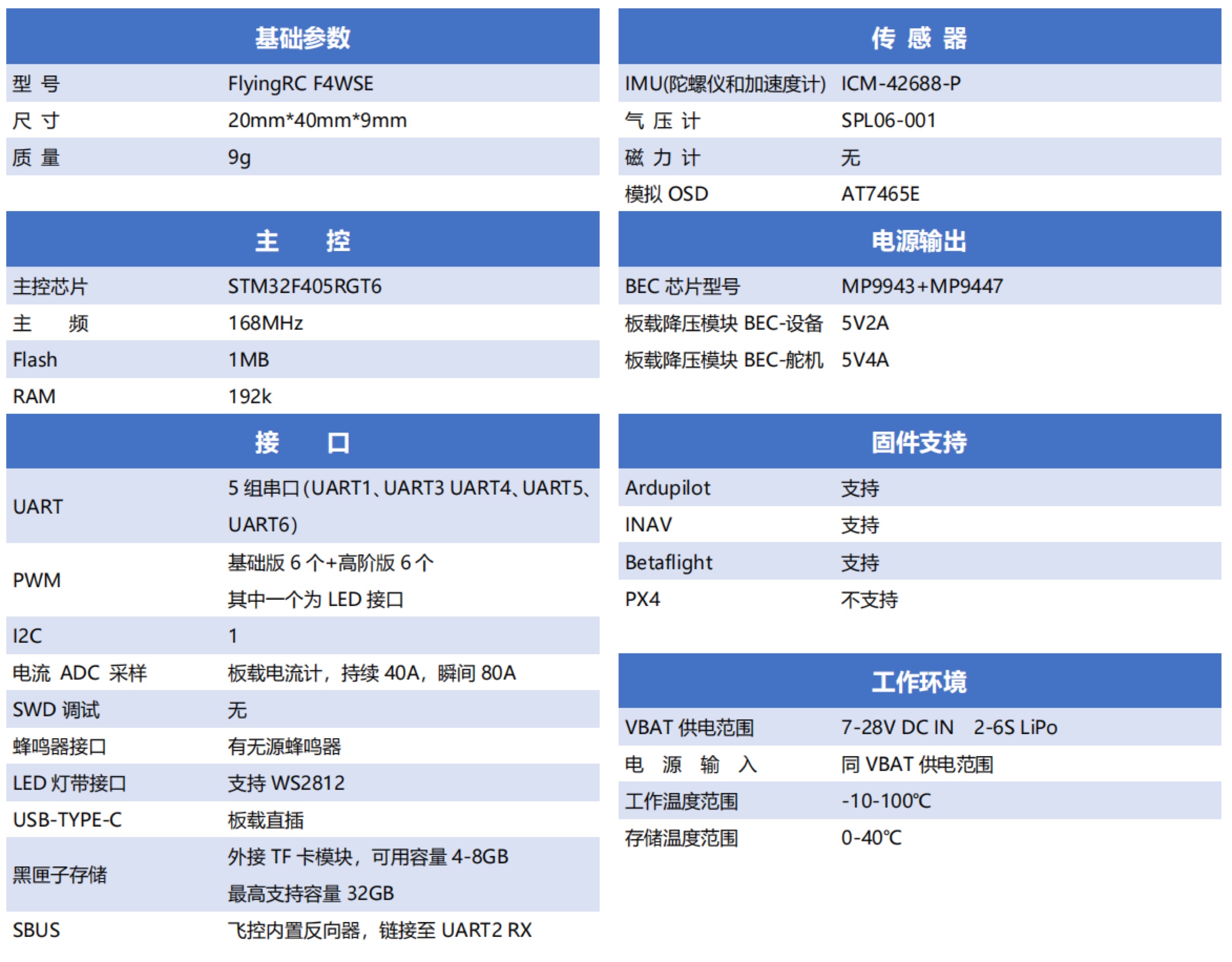

Key specs
- STM32F405 fixed-wing autopilot controller
- ArduPilot/INAV-style airplane control workflow

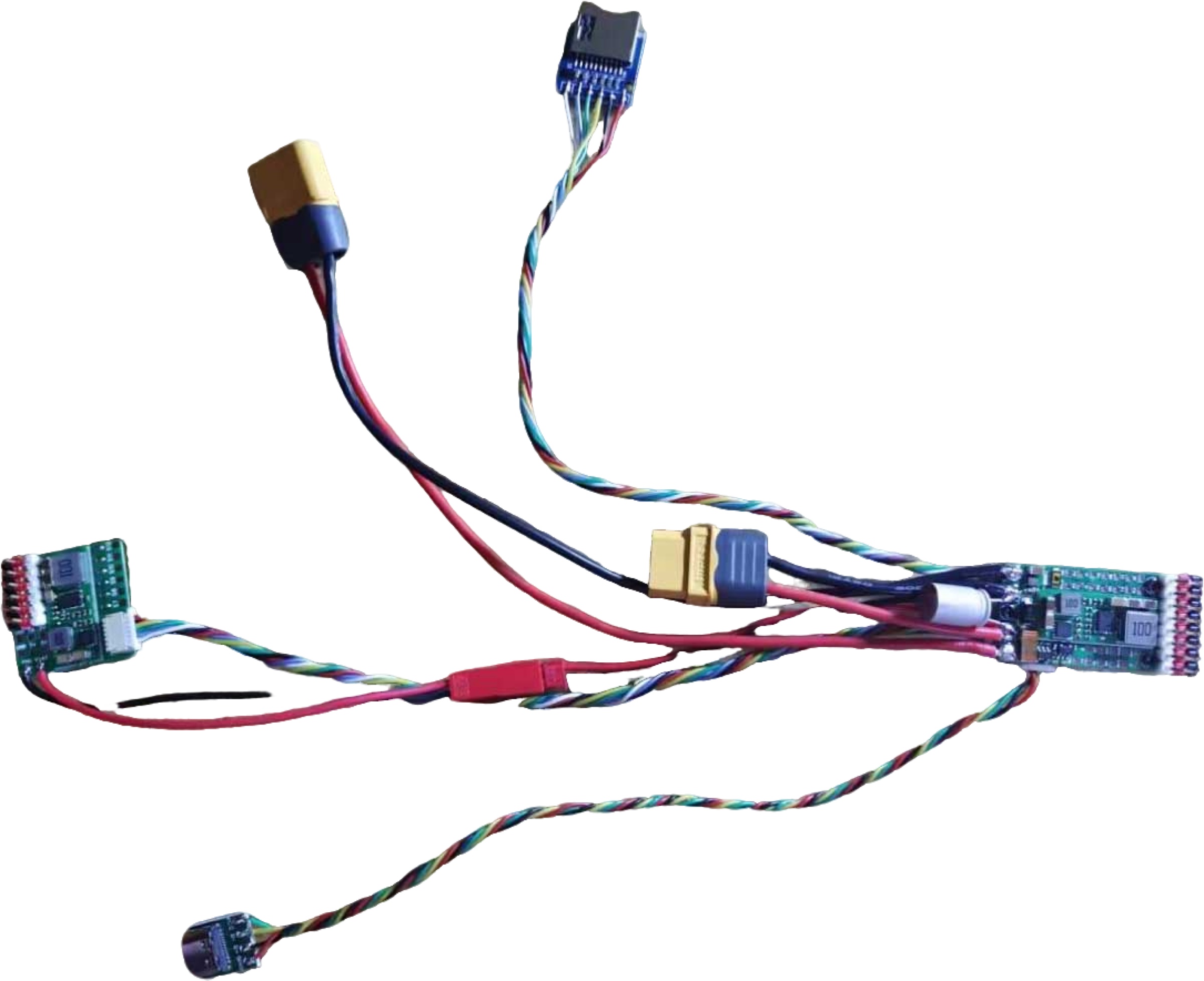

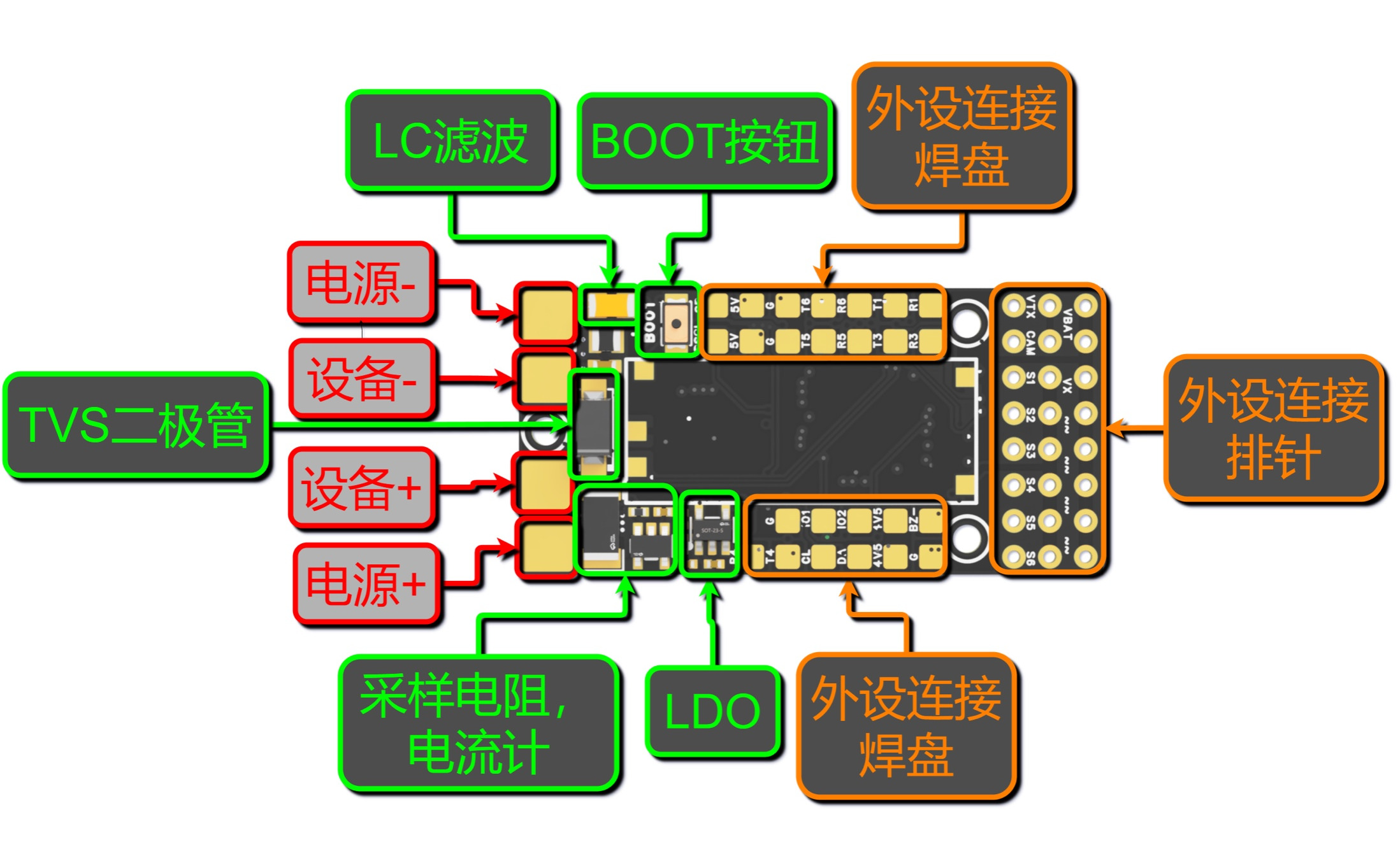

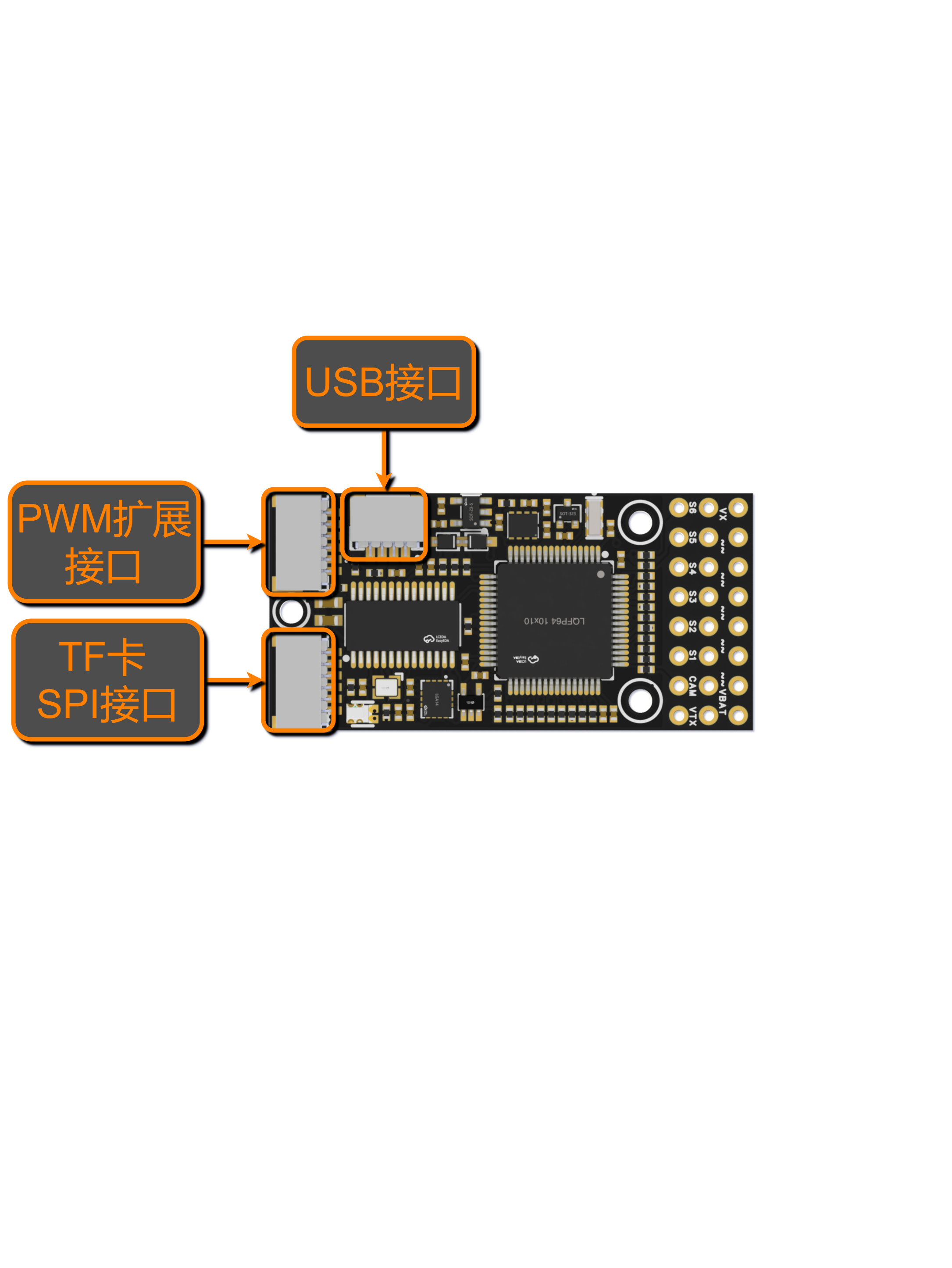

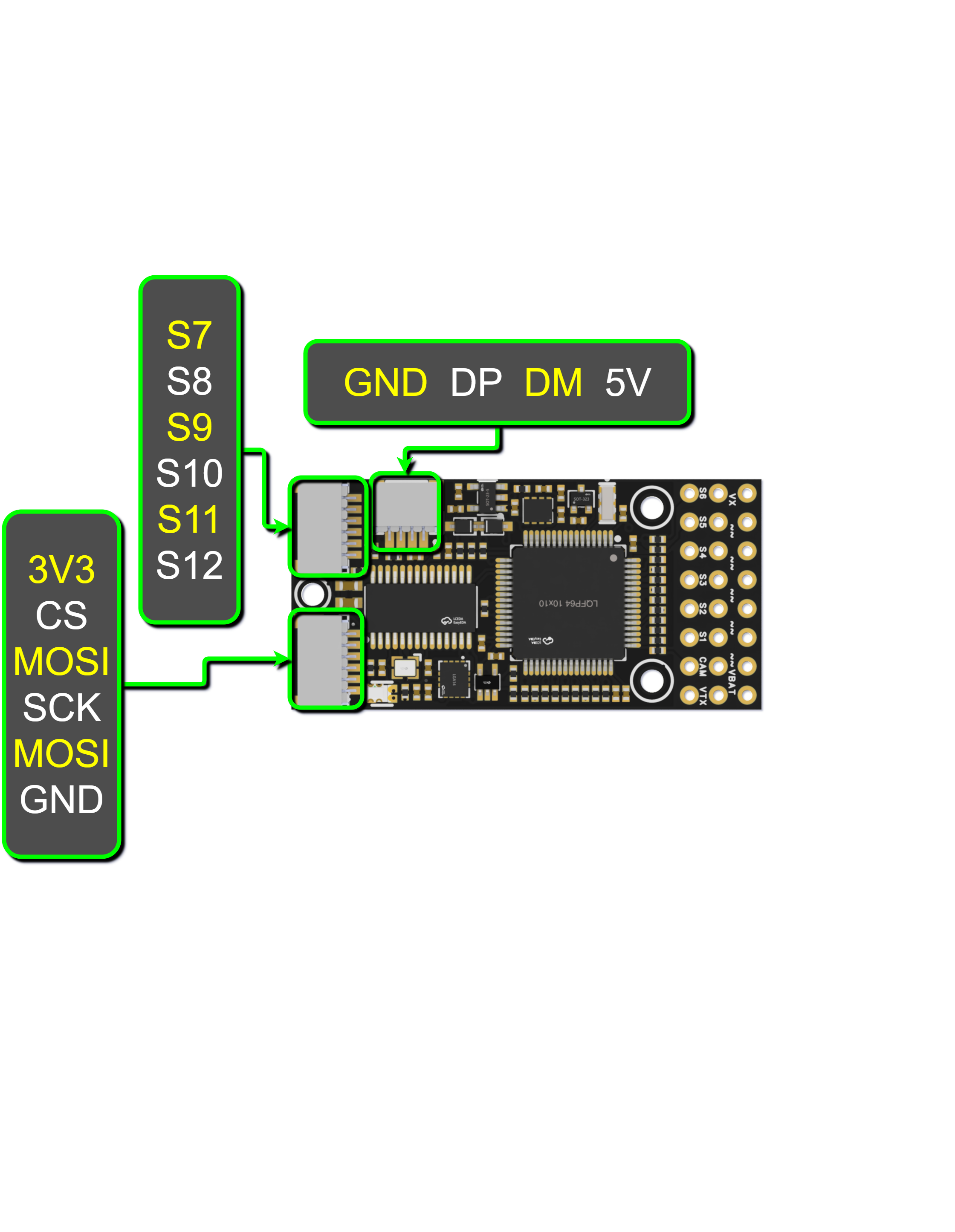

- Wiring layout reference for receiver, GPS, telemetry, and PWM outputs
Downloads
Reference files

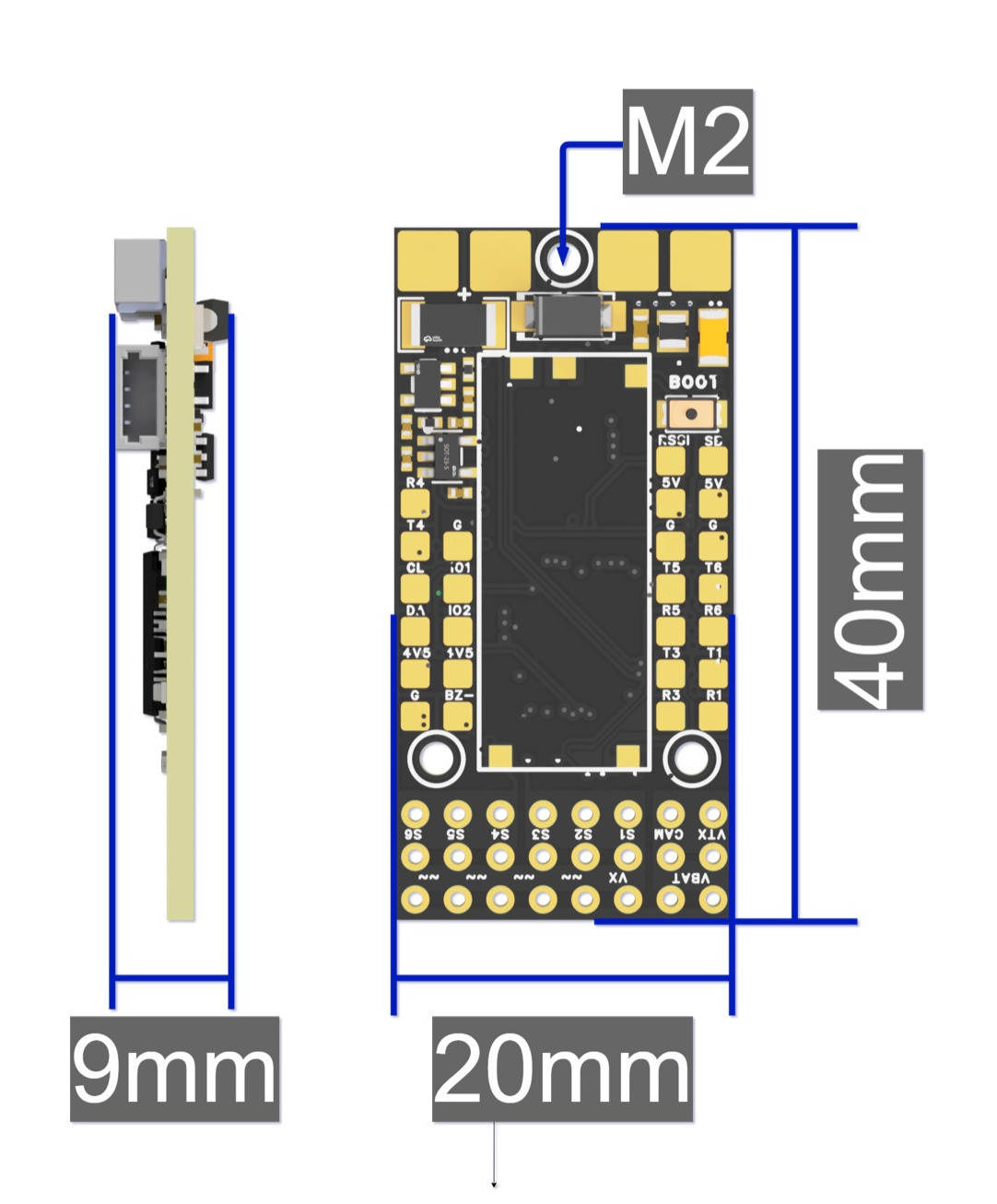

Wiring / dimensions / specs
