FlyingRC 12S 440A FPV Power Distribution Board
A high-current power distribution board for FPV drones. It distributes main battery power to ESCs or other power loads while providing a structured central power node.
Best used for
- High-voltage FPV builds using up to 12S LiPo.
- Builds that need a central high-current distribution board.
- Users planning clean battery-to-ESC power routing.
Key features
- Manual states 6-60 V DC input / 2-12S LiPo range.
- Designed for high-current FPV power distribution.

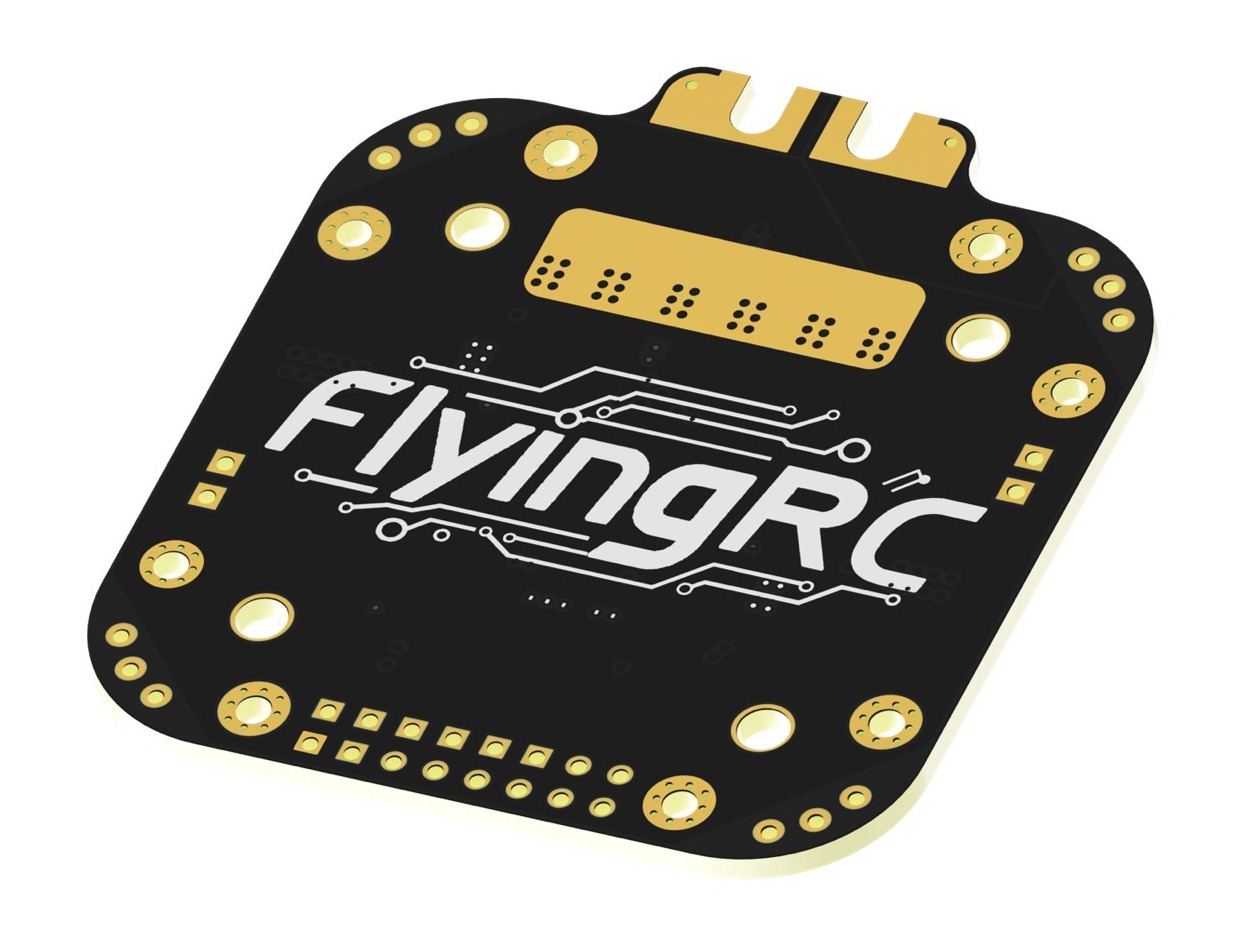

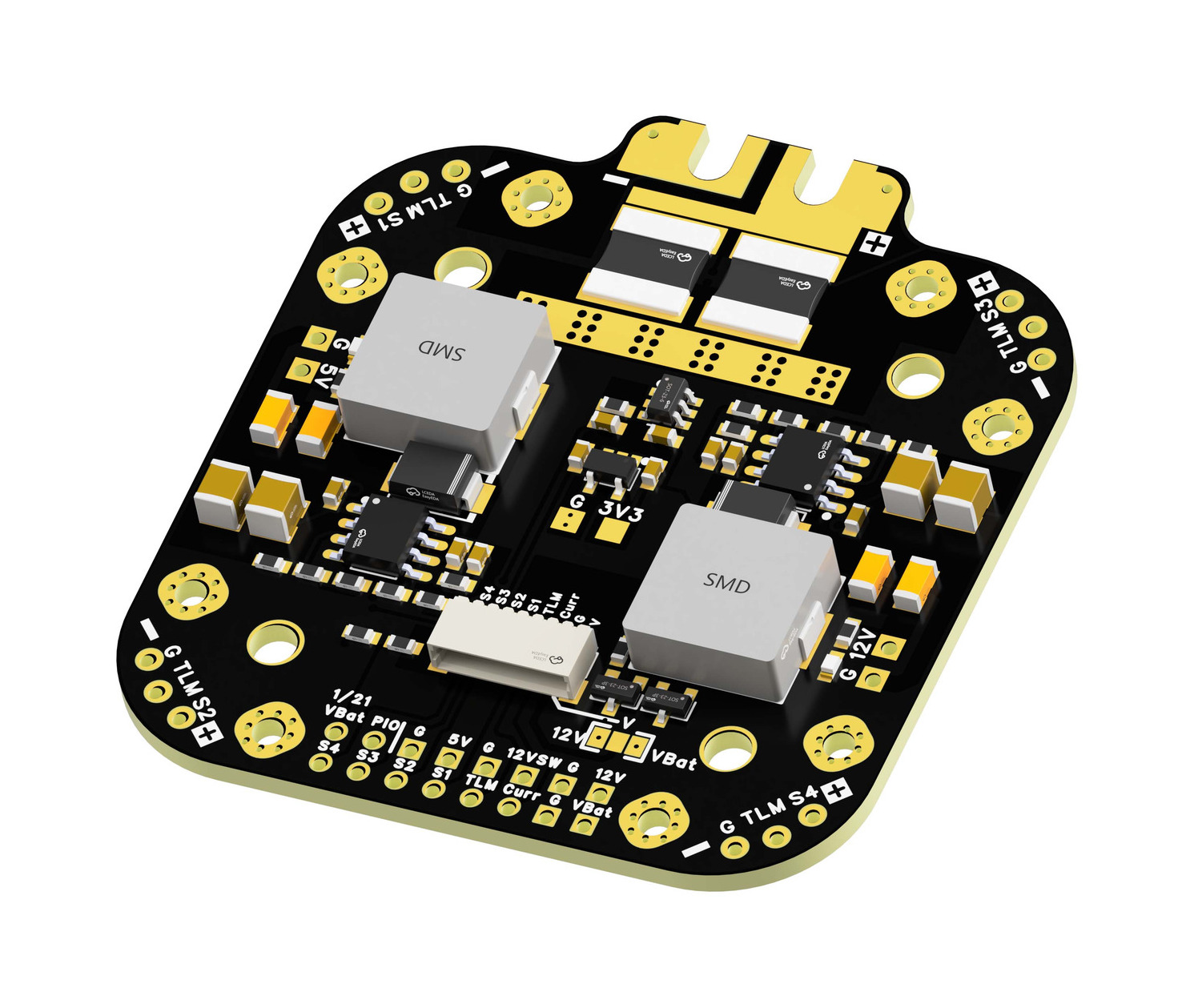

- Top and bottom PCB renders are available for layout inspection.
Setup / wiring notes

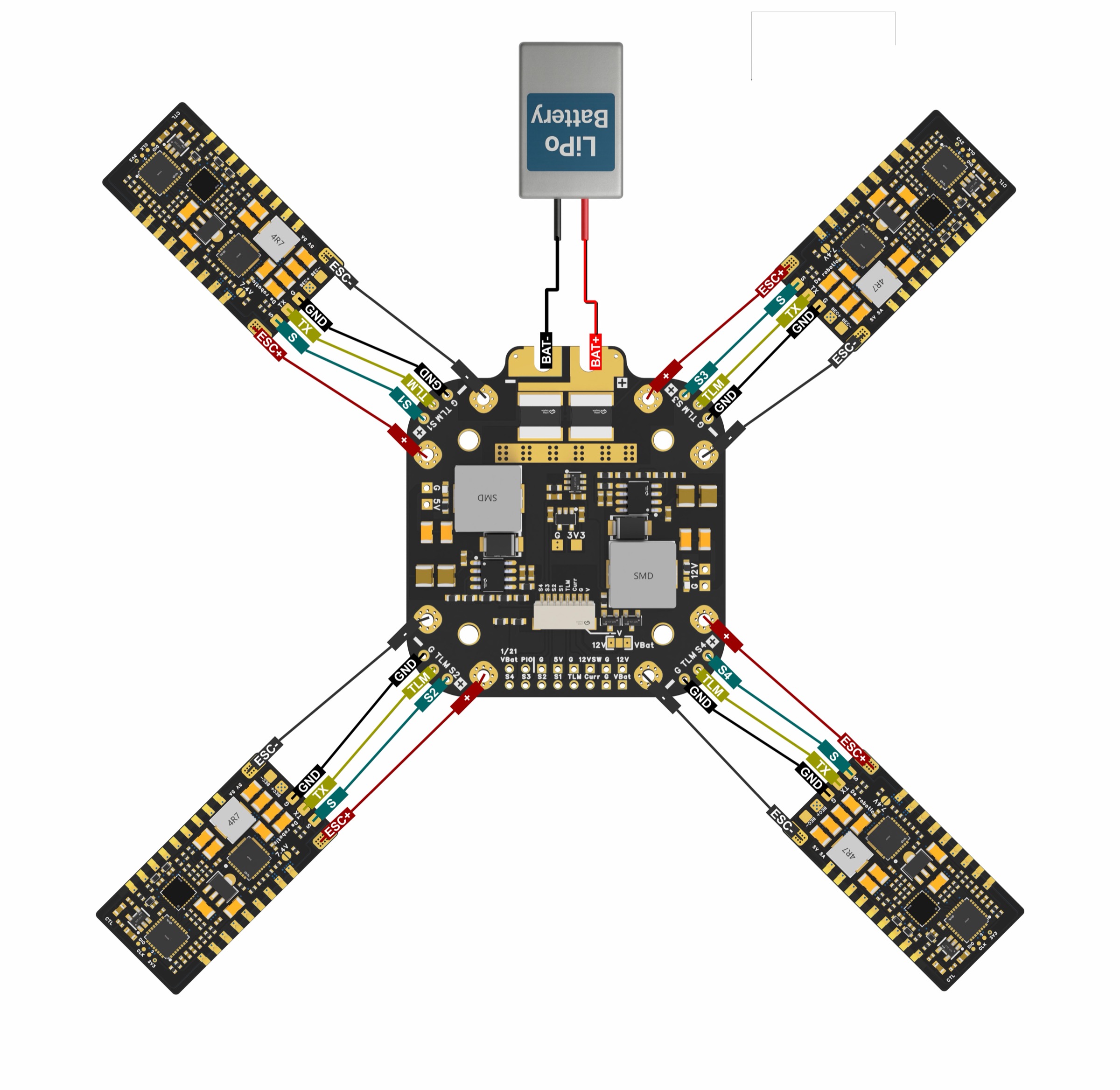

- Plan battery and ESC wire routing before soldering.
- Use adequate wire gauge, soldering quality, insulation, and strain relief for high-current paths.
Check before use
- High-current power distribution failures can be destructive; inspect every solder joint before power-up.
Key specs
- High-current FPV power distribution board
- 6-60 V / 2-12S LiPo input range
- 4 x 80 A continuous / 110 A peak ESC outputs; current sensor range up to 440 A
Downloads

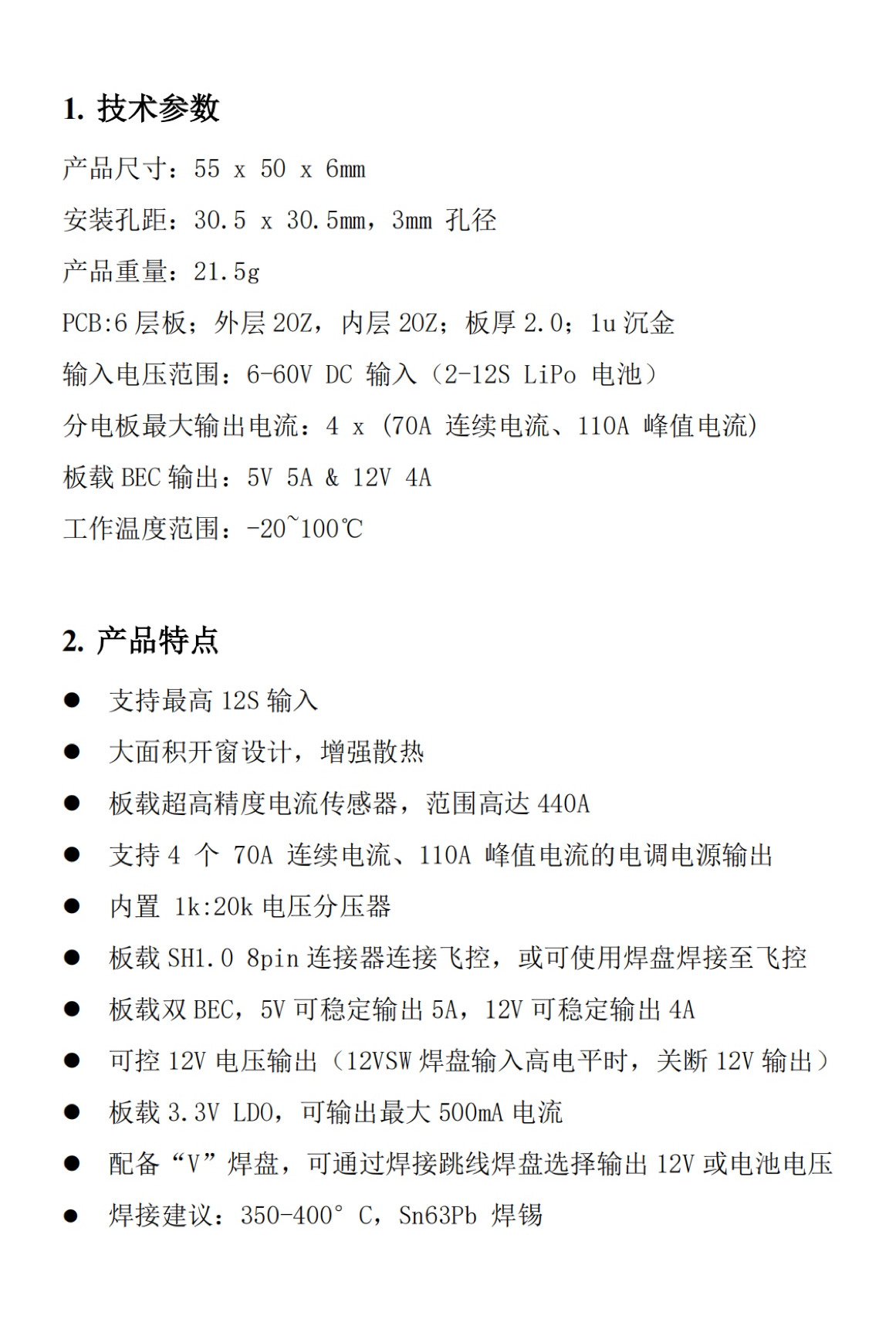

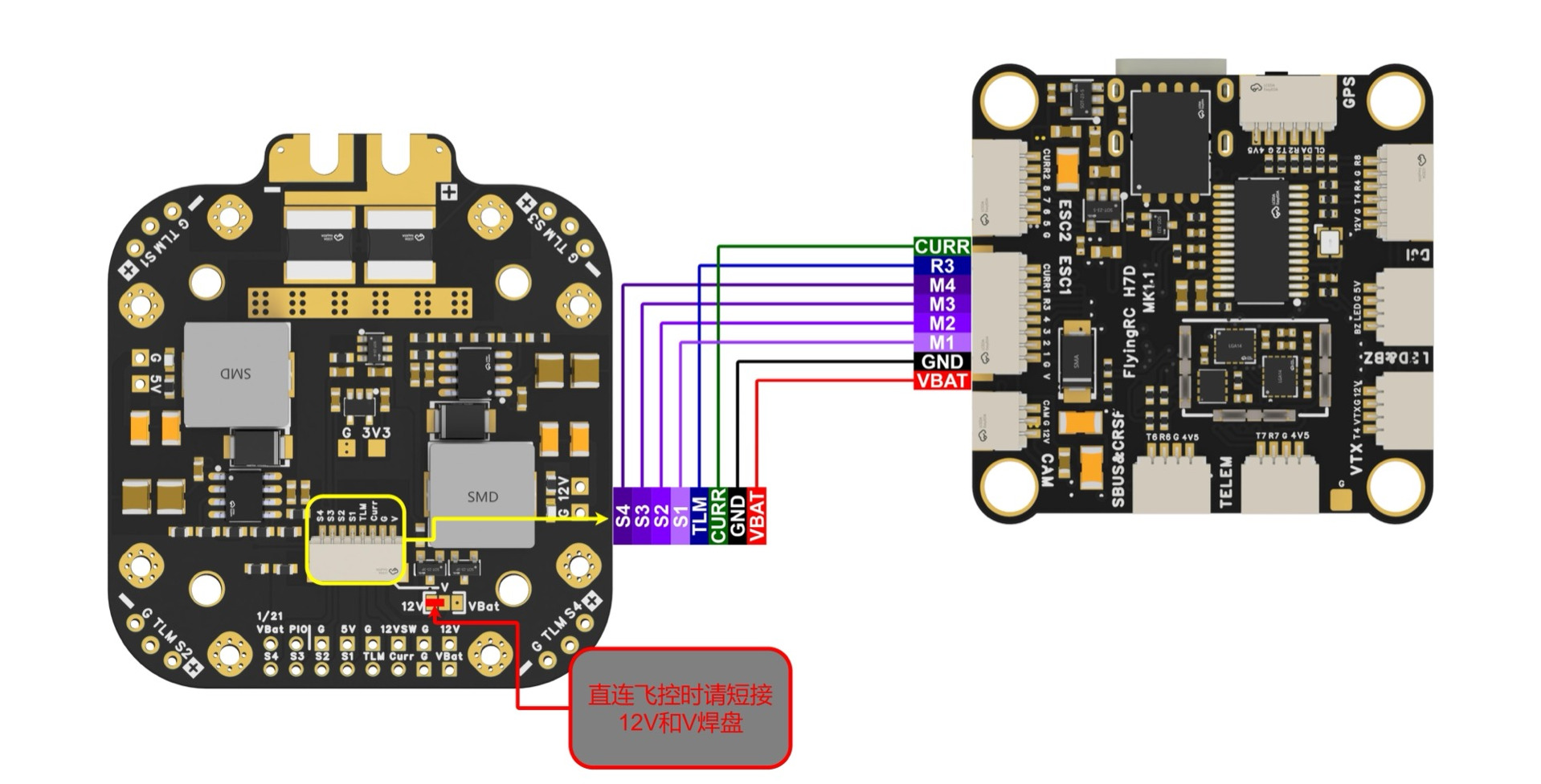

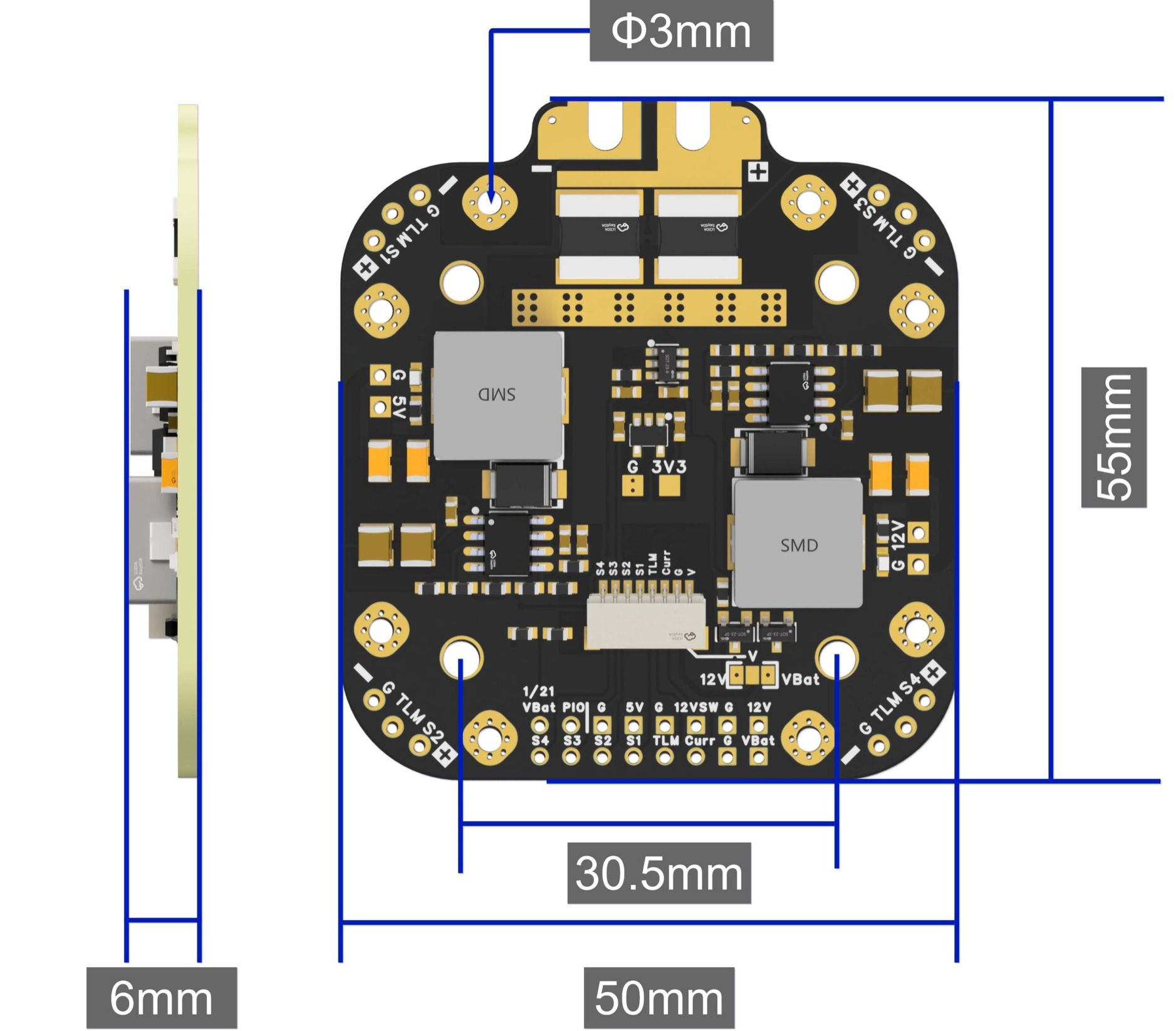

Wiring / dimensions / specs
