FlyingRC F4WSE F405 Pro Fixed-wing Flight Controller

Name: FlyingRC F4WSE F405 Pro Fixed-wing Flight Controller
Brand: FlyingRC Official

A Pro fixed-wing F405 flight controller intended for ArduPlane/INAV aircraft. It acts as the aircraft’s autopilot, sensor hub, and servo/ESC output controller.

Fixed-wingFlight controllerSTM32F405ArduPlaneCheck serial mappingUART / serialPWM outputsVTX / video wiring

Buy on Taobao Email sales WhatsApp support GitHub

FlyingRC F4WSE F405 Pro Fixed-wing Flight Controller

Best used for

Fixed-wing users who want a richer F4WSE family board.
ArduPlane or INAV builds where open firmware and wiring clarity are important.
Users upgrading from simpler fixed-wing controllers.

Key features

Supports ArduPilot and INAV; ArduPlane is the fixed-wing recommended path in the manual.
Directly compatible with MatekF405-TE firmware according to the manual.
Manual includes UART/SERIAL mapping and default function references.
Built-in analog video switch for two camera inputs.

Setup / wiring notes

For fixed-wing aircraft, start with ArduPlane or INAV rather than generic multirotor assumptions.
Check the SERIAL mapping table before assigning telemetry, GPS, or receiver ports.
For dual analog camera switching, connect the two camera video signals to C0 and C1, connect the analog VTX video input to VTX, and keep both cameras and the VTX on a shared ground.
In ArduPilot, configure the switch as Relay2 with RELAY2_PIN=82 and RELAY2_FUNCTION=1, then assign an RC channel such as RC8_OPTION=34 to toggle the active camera input.

Check before use

Use the BDShot ArduPlane firmware only for ESC setups that need bidirectional DShot; standard PWM/servo builds should use the normal ArduPlane firmware.
Do not guess port numbers from silkscreen alone; use the firmware mapping table.
Power cameras and analog VTX only within their rated voltage range; if the default camera is opposite to the expected input, invert Relay2 or swap the C0/C1 signal wires.

Key specs

F405 Pro fixed-wing autopilot controller
Supports ArduPilot and INAV workflows
MatekF405-TE compatible firmware path noted in manual

Downloads

ArduPilot

Latest stable

ArduCopter 4.7.1 firmware with bootloader Latest stable4.7.1ArduCopterStable

Board revision: F4WSE Pro; verify BMI270 or ICM42688P hardware revision before flashing.
Firmware target: FlyingRC_F4WSE_Pro / ArduCopter
SHA256: ed68e9b36d065a200ba4b39812e1d6ae6f1cd9aba96b8128a0bab28f3fcf16ea
Compatibility note: ArduCopter 4.7.1 firmware with bootloader for the FlyingRC_F4WSE_Pro target. Includes the September 2026 Battery 2 analog-input configuration.

ArduPlane 4.7.1 firmware with bootloader Latest stable4.7.1ArduPlaneStable

Board revision: F4WSE Pro; verify BMI270 or ICM42688P hardware revision before flashing.
Firmware target: FlyingRC_F4WSE_Pro / ArduPlane
SHA256: 655012fbc1f504f6120ba1749d0c3ca42c02f19779ab26d119e76684743cd34b
Compatibility note: ArduPlane 4.7.1 firmware with bootloader for the FlyingRC_F4WSE_Pro target. Includes the September 2026 Battery 2 analog-input configuration.

ArduRover 4.7.1 firmware with bootloader Latest stable4.7.1ArduRoverStable

Board revision: F4WSE Pro; verify BMI270 or ICM42688P hardware revision before flashing.
Firmware target: FlyingRC_F4WSE_Pro / ArduRover
SHA256: a3a1e31dc113e5fe2dca244d4469c631c71cee7df9d19395fbeec43e45cbf234
Compatibility note: ArduRover 4.7.1 firmware with bootloader for the FlyingRC_F4WSE_Pro target. Includes the September 2026 Battery 2 analog-input configuration.

ArduSub 4.7.1 firmware with bootloader Latest stable4.7.1ArduSubStable

Board revision: F4WSE Pro; verify BMI270 or ICM42688P hardware revision before flashing.
Firmware target: FlyingRC_F4WSE_Pro / ArduSub
SHA256: 6baca70873bd521ab6fd72edfd13b5e0a6b7944668cd40362a4ce5d8910d0b76
Compatibility note: ArduSub 4.7.1 firmware with bootloader for the FlyingRC_F4WSE_Pro target. Includes the September 2026 Battery 2 analog-input configuration.

Past / unstable releases (9)

ArduPlane 4.7.0 firmware with bootloader Archived4.7.0ArduPlaneStable

Board revision: F4WSE Pro; verify BMI270 or ICM42688P hardware revision before flashing.
Firmware target: FlyingRC_F4WSE_Pro / ArduPlane
SHA256: 9804dcf6c2e4bf39ecd8aade6e7b03fda46624313679b49861a2095d8c3adac8
Compatibility note: ArduPlane 4.7.0 firmware with bootloader for the F4WSE Pro target. Includes the September 2026 Battery 2 analog-input configuration.
Release note: Archived formal release; use ArduPlane 4.7.1 as the recommended stable release.

ArduCopter 4.7.0 firmware with bootloader Archived4.7.0ArduCopterStable

Board revision: F4WSE Pro; verify BMI270 or ICM42688P hardware revision before flashing.
Firmware target: FlyingRC_F4WSE_Pro / ArduCopter
SHA256: f3dd4ab2884a9eeb0f669ab56e5c7e7227c0d4539b903b18bad7fedaa29c15db
Compatibility note: ArduCopter 4.7.0 firmware with bootloader for the F4WSE Pro target. Includes the September 2026 Battery 2 analog-input configuration.
Release note: Archived formal release; use ArduCopter 4.7.1 as the recommended stable release.

ArduRover 4.7.0 firmware with bootloader Archived4.7.0ArduRoverStable

Board revision: F4WSE Pro; verify BMI270 or ICM42688P hardware revision before flashing.
Firmware target: FlyingRC_F4WSE_Pro / ArduRover
SHA256: ac1ead219dec910609086c2b0af6030a106980701ea494f9c1ee809fb2c4a803
Compatibility note: ArduRover 4.7.0 firmware with bootloader for the F4WSE Pro target. Includes the September 2026 Battery 2 analog-input configuration.
Release note: Archived formal release; use ArduRover 4.7.1 as the recommended stable release.

ArduSub 4.7.0 firmware with bootloader Archived4.7.0ArduSubStable

Board revision: F4WSE Pro; verify BMI270 or ICM42688P hardware revision before flashing.
Firmware target: FlyingRC_F4WSE_Pro / ArduSub
SHA256: c1f02f6fcc8ae3673e899be1641ba37a88daa2ae98e726a33ad1c87b1248bcc3
Compatibility note: ArduSub 4.7.0 firmware with bootloader for the F4WSE Pro target. Includes the September 2026 Battery 2 analog-input configuration.
Release note: Archived formal release; use ArduSub 4.7.1 as the recommended stable release.

ArduPlane 4.6.3 firmware with bootloader Archived4.6.3ArduPlaneStable

Board revision: F4WSE Pro; verify BMI270 or ICM42688P hardware revision before flashing.
Firmware target: FlyingRC_F4WSE_Pro / ArduPlane
SHA256: 56a9e7d1291671c1745aeee620926ea6fb8a4821b865dc8b0e2595e0d4801436
Compatibility note: ArduPlane 4.6.3 firmware with bootloader for the F4WSE Pro target. Includes the September 2026 Battery 2 analog-input configuration.

ArduPlane 4.6.3 BDShot firmware with bootloader Archived4.6.3ArduPlane BDShotStable

Board revision: F4WSE Pro; verify BMI270 or ICM42688P hardware revision before flashing.
Firmware target: FlyingRC_F4WSE_Pro / ArduPlane BDShot
SHA256: b9a331b6b9a37716fa8e9be1fbf879a7b33465b1fa6744f82ece6d59da315188
Compatibility note: ArduPlane 4.6.3 BDShot firmware with bootloader for the F4WSE Pro target. Includes the September 2026 Battery 2 analog-input configuration.
Release note: Special BDShot build; use only for ESC setups that need bidirectional DShot.

ArduCopter 4.6.3 firmware with bootloader Archived4.6.3ArduCopterStable

Board revision: F4WSE Pro; verify BMI270 or ICM42688P hardware revision before flashing.
Firmware target: FlyingRC_F4WSE_Pro / ArduCopter
SHA256: 39a294d4b287e71fb6f9f2816729ab55b8e1155469aab21f4c6ff341b9a7d3aa
Compatibility note: ArduCopter 4.6.3 firmware with bootloader for the F4WSE Pro target. Includes the September 2026 Battery 2 analog-input configuration.

ArduPlane 4.5.7 firmware with bootloader Archived4.5.7ArduPlaneStable

Board revision: F4WSE Pro; verify BMI270 or ICM42688P hardware revision before flashing.
Firmware target: FlyingRC_F4WSE_Pro / ArduPlane
SHA256: e615a975fe06f8ebfea54959d835453881122ff424e7d1bcb4327e9cf4c733af
Compatibility note: ArduPlane 4.5.7 firmware with bootloader for the F4WSE Pro target. Includes the September 2026 Battery 2 analog-input configuration.
Release note: Older stable ArduPlane build retained for users who need the previous tested release.

ArduRover 4.6.3 firmware with bootloader Archived4.6.3ArduRoverStable

Board revision: F4WSE Pro; verify BMI270 or ICM42688P hardware revision before flashing.
Firmware target: FlyingRC_F4WSE_Pro / ArduRover
SHA256: 8dc17697feed3d3855986b547c8fa93bc9d7f31fc23f082d05096a9bc6e5eb8e
Compatibility note: ArduRover 4.6.3 firmware with bootloader for the F4WSE Pro target. Includes the September 2026 Battery 2 analog-input configuration.

Betaflight

Latest stable

Betaflight 2026.6.2 firmware Latest stable2026.6.2Stable

Board revision: F4WSE Pro; verify BMI270 or ICM42688P hardware revision before flashing.
Firmware target: STM32F405 / FLYINGRCF4WSEPRO
SHA256: 665a509a13be573423937b97cca4379cba8dcad40d9a8fe1e41253783e8f2f6a
Compatibility note: Betaflight 2026.6.2 firmware for the FLYINGRCF4WSEPRO target.

Past / unstable releases (4)

Betaflight 2026.6.1 firmware Archived2026.6.1Stable

Board revision: F4WSE Pro; verify BMI270 or ICM42688P hardware revision before flashing.
Firmware target: STM32F405 / FLYINGRCF4WSEPRO
SHA256: ff1ab73aa083c1924a27010bffd4b629e09da81ee0f04b740e0dfed2c84929cf
Compatibility note: Betaflight 2026.6.1 firmware for the FLYINGRCF4WSEPRO target.
Release note: Archived formal release; use Betaflight 2026.6.2 as the recommended stable release.

Betaflight 2025.12.5 firmware Archived2025.12.5Stable

Board revision: F4WSE Pro; verify BMI270 or ICM42688P hardware revision before flashing.
Firmware target: STM32F405 / FLYINGRCF4WSEPRO
SHA256: b0ca203c20f507594137cfdd64a69d3d6b009ce75f714472bc0f345cbc8d57f0
Compatibility note: Betaflight 2025.12.5 firmware for the FLYINGRCF4WSEPRO target.

Betaflight 4.5.5 firmware Archived4.5.5Stable

Board revision: F4WSE Pro; verify BMI270 or ICM42688P hardware revision before flashing.
Firmware target: STM32F405 / FLYINGRCF4WSEPRO
SHA256: abbea0690ddb64050b6b1f43efb7984dc06a795c1c8ae656ede789b70757a2c6
Compatibility note: Betaflight 4.5.5 firmware for the FLYINGRCF4WSEPRO target.
Release note: Retained Betaflight 4.5.5 stable maintenance-line build for users who need the 4.5.x series; use Betaflight 2026.6.2 for the current recommended stable build.

Betaflight 2025.12.4 firmware Archived2025.12.4Stable

Board revision: F4WSE Pro; verify BMI270 or ICM42688P hardware revision before flashing.
Firmware target: STM32F405 / FLYINGRCF4WSEPRO
SHA256: 1e982c89bd9946f146e597275ac261fd41d32945023dca6f6f93bc96ed484b5f
Compatibility note: Betaflight 2025.12.4 firmware for the FLYINGRCF4WSEPRO target.
Release note: Older stable Betaflight build retained for users who need the previous tested release.

INAV / INAVFlight

Past / unstable releases (2)

INAV 9.1.0 firmware Archived9.1.0Stable

Board revision: F4WSE Pro; verify BMI270 or ICM42688P hardware revision before flashing.
Firmware target: FLYINGRCF4WSEPRO
SHA256: a5a4c5481812040f21f6ddd3a60b72b6039565891dc121b9c9798b32e856de3d
Compatibility note: INAV 9.1.0 firmware for the FLYINGRCF4WSEPRO target.

INAV 9.0.1 firmware Archived9.0.1Stable

Board revision: F4WSE Pro; verify BMI270 or ICM42688P hardware revision before flashing.
Firmware target: FLYINGRCF4WSEPRO
SHA256: b996bdd8cb1dd4a41a94a15554c7d8b5cad0dc52b5c3b23198d53da1e0c5f1c0
Compatibility note: INAV 9.0.1 firmware for the FLYINGRCF4WSEPRO target.
Release note: Older stable INAV build retained for users who need the previous tested release.

Product manual SHA256 checksums

Reference files

ArduPilot F4WSE Pro target branch INAV F4WSE Pro target branch

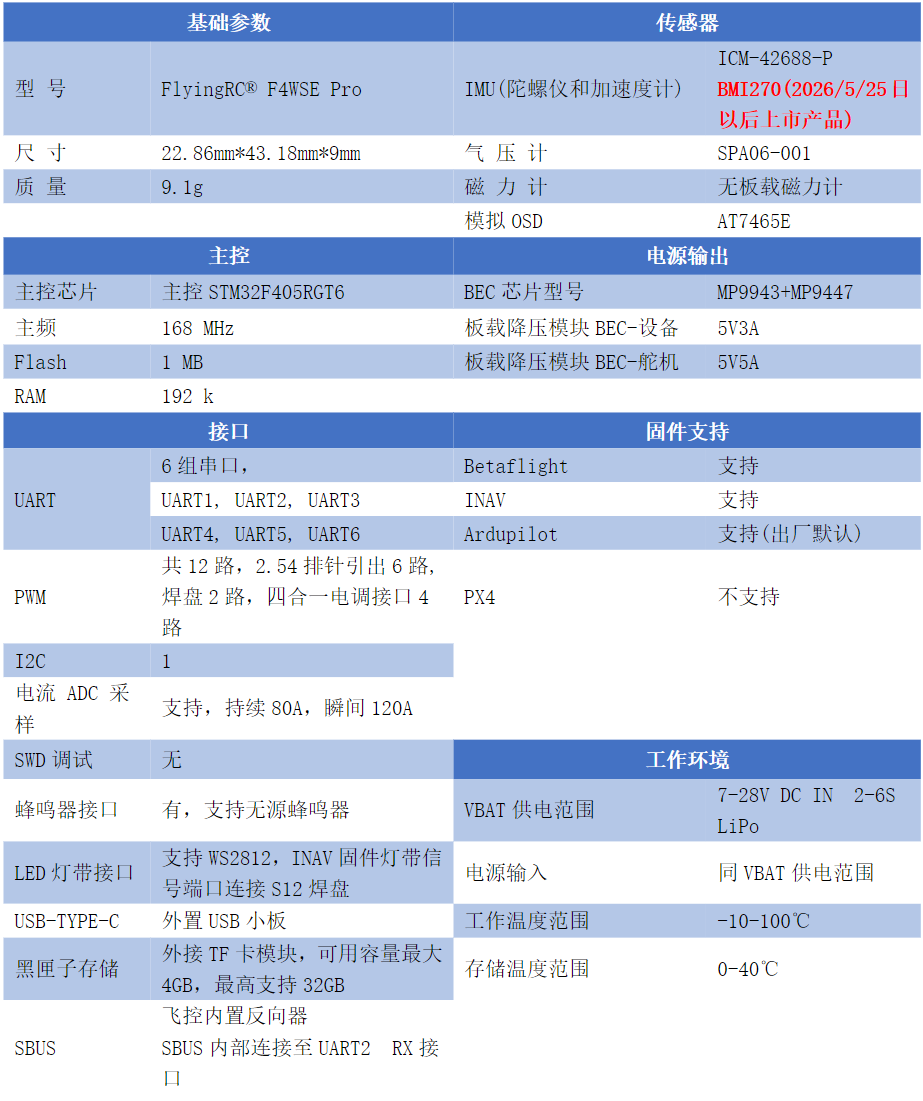

Wiring / dimensions / specs

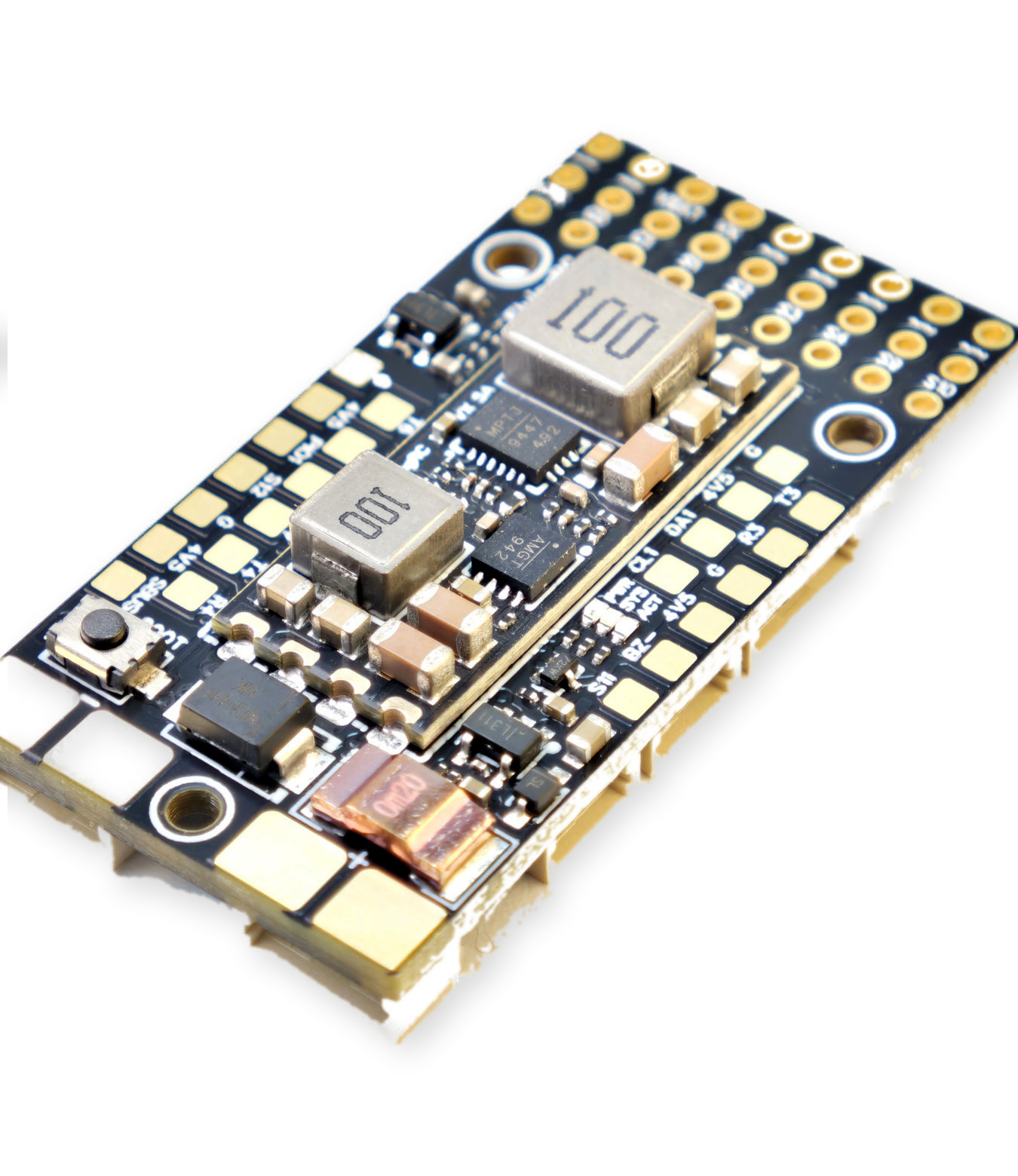

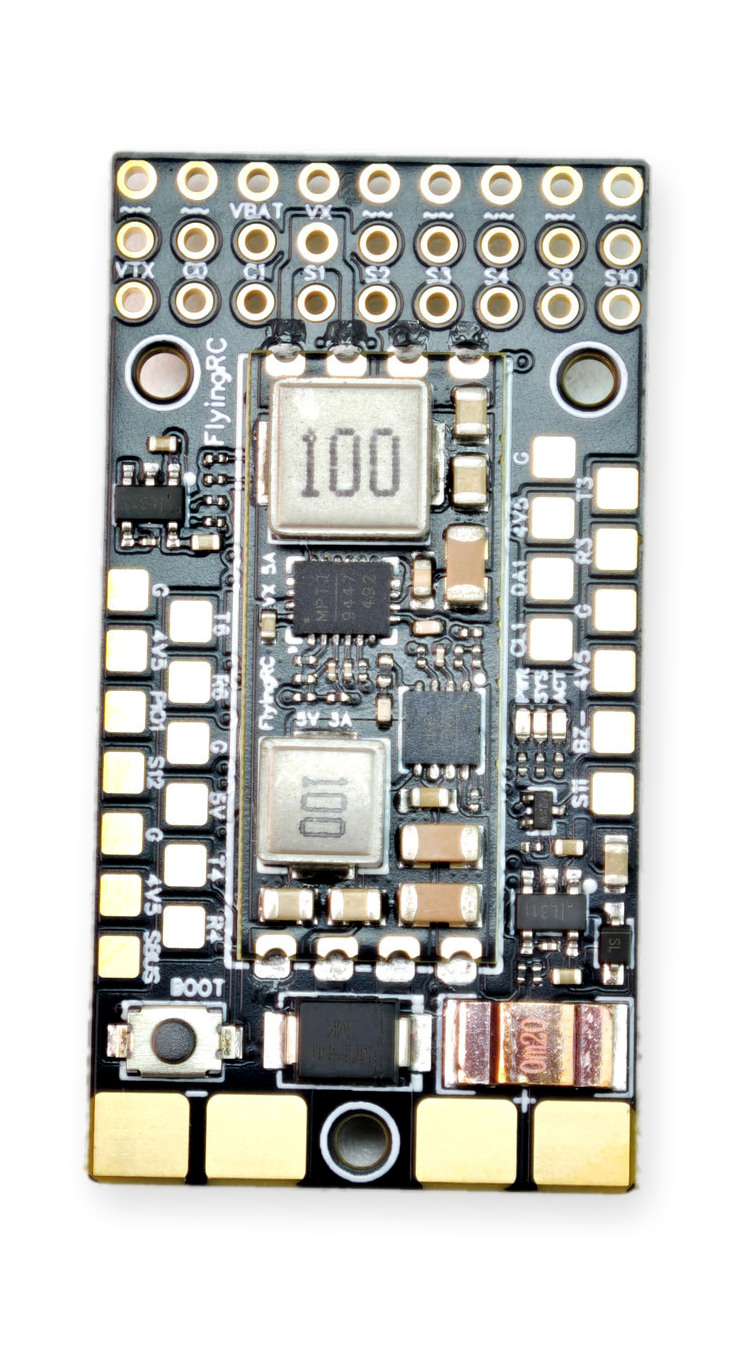

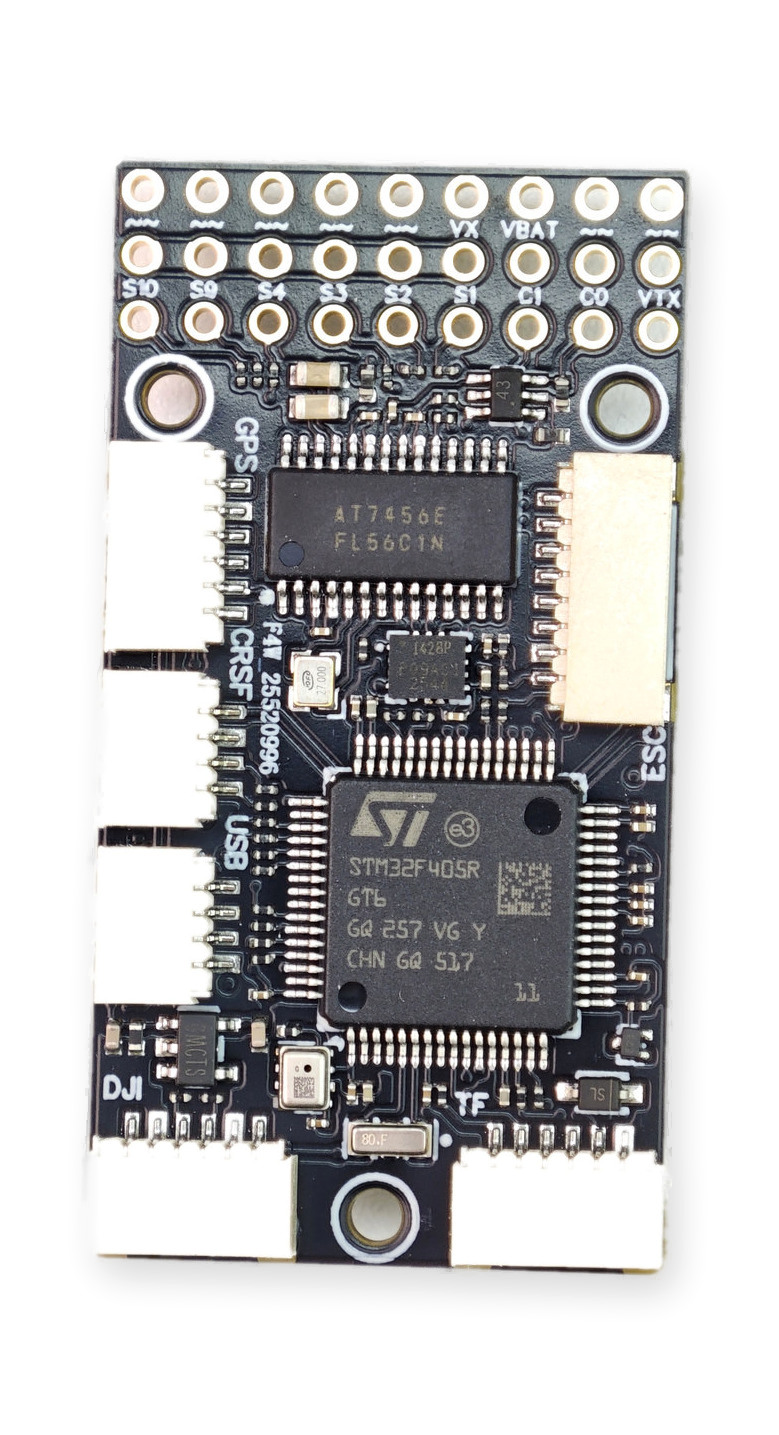

Product gallery

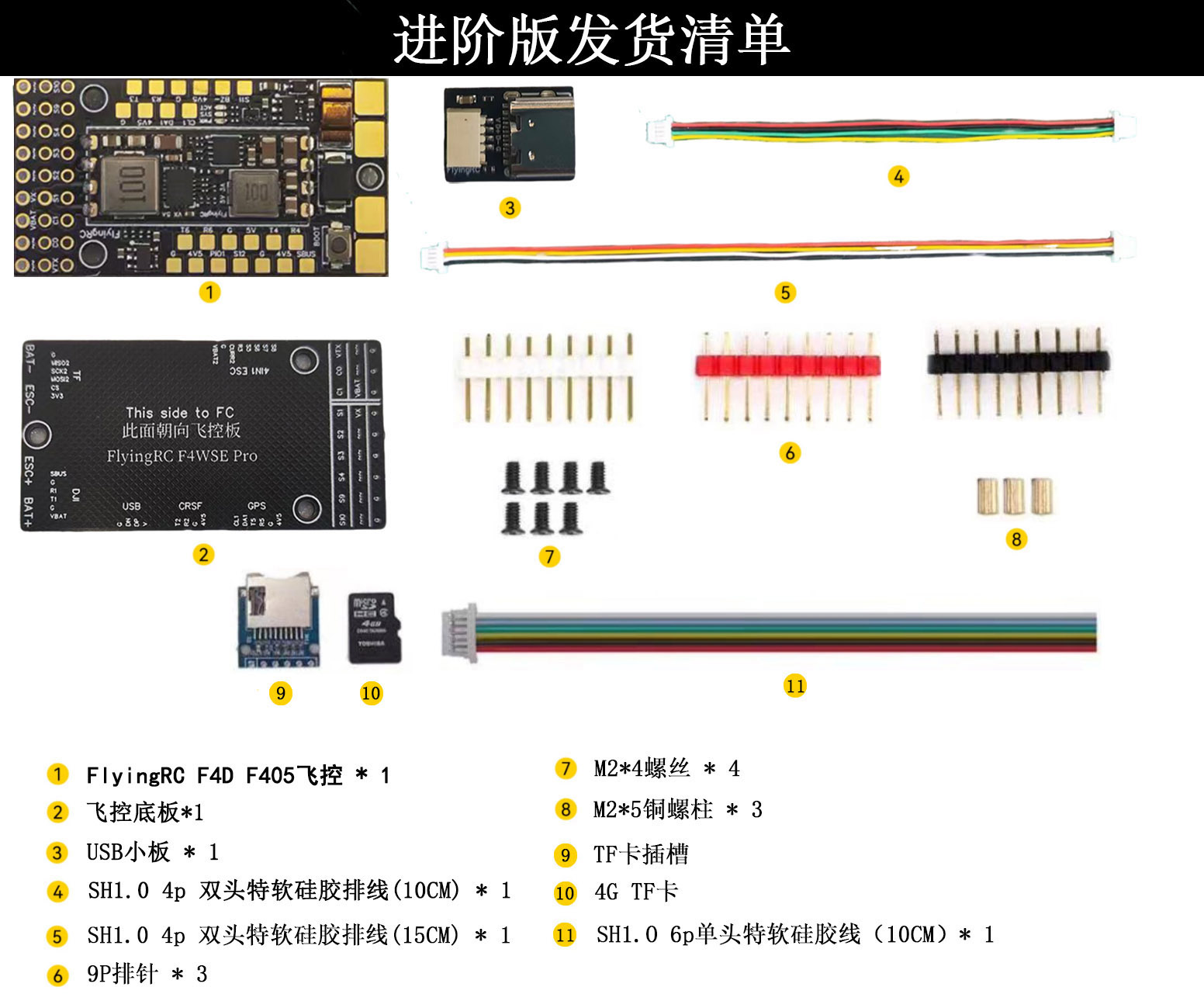

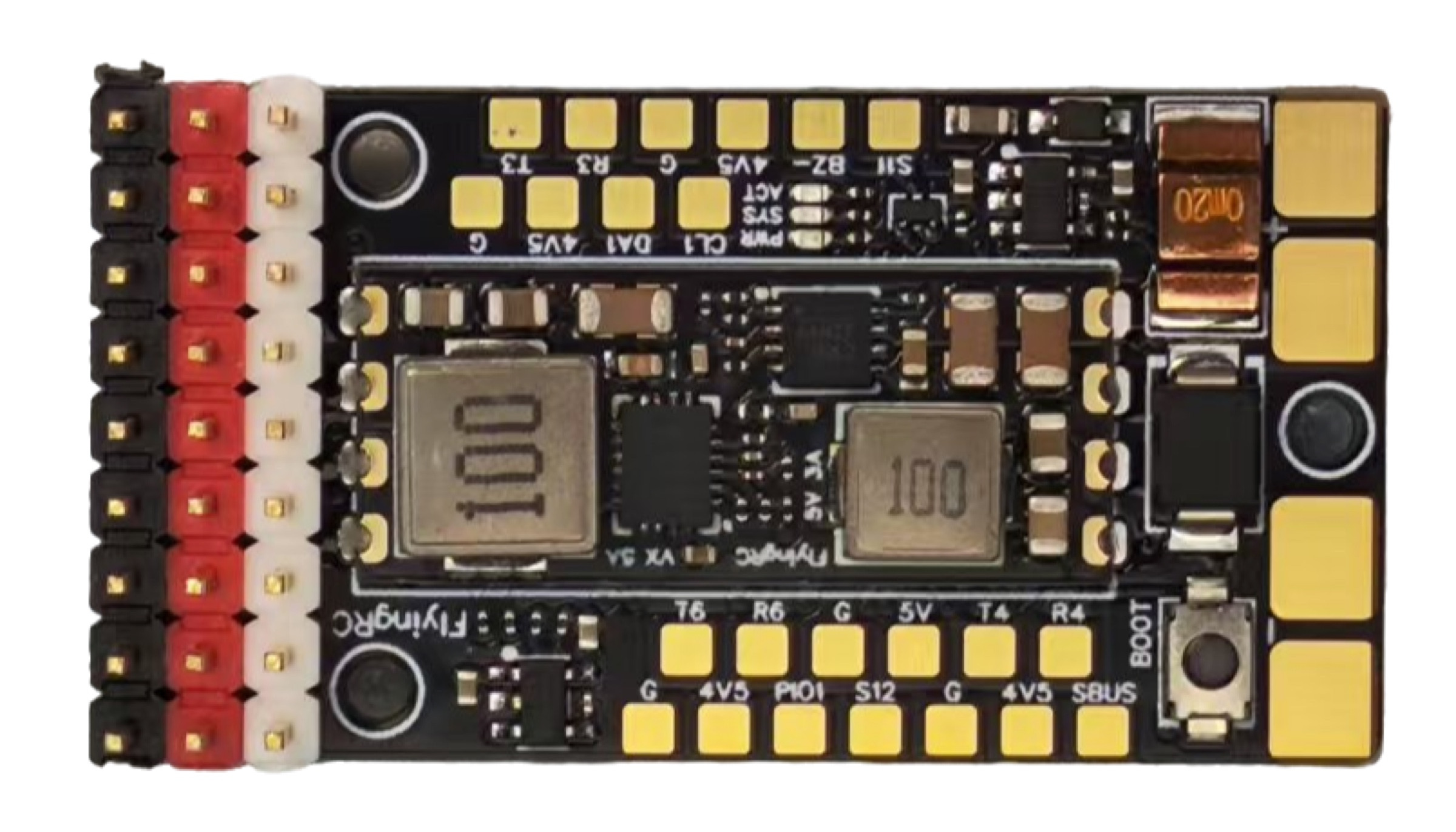

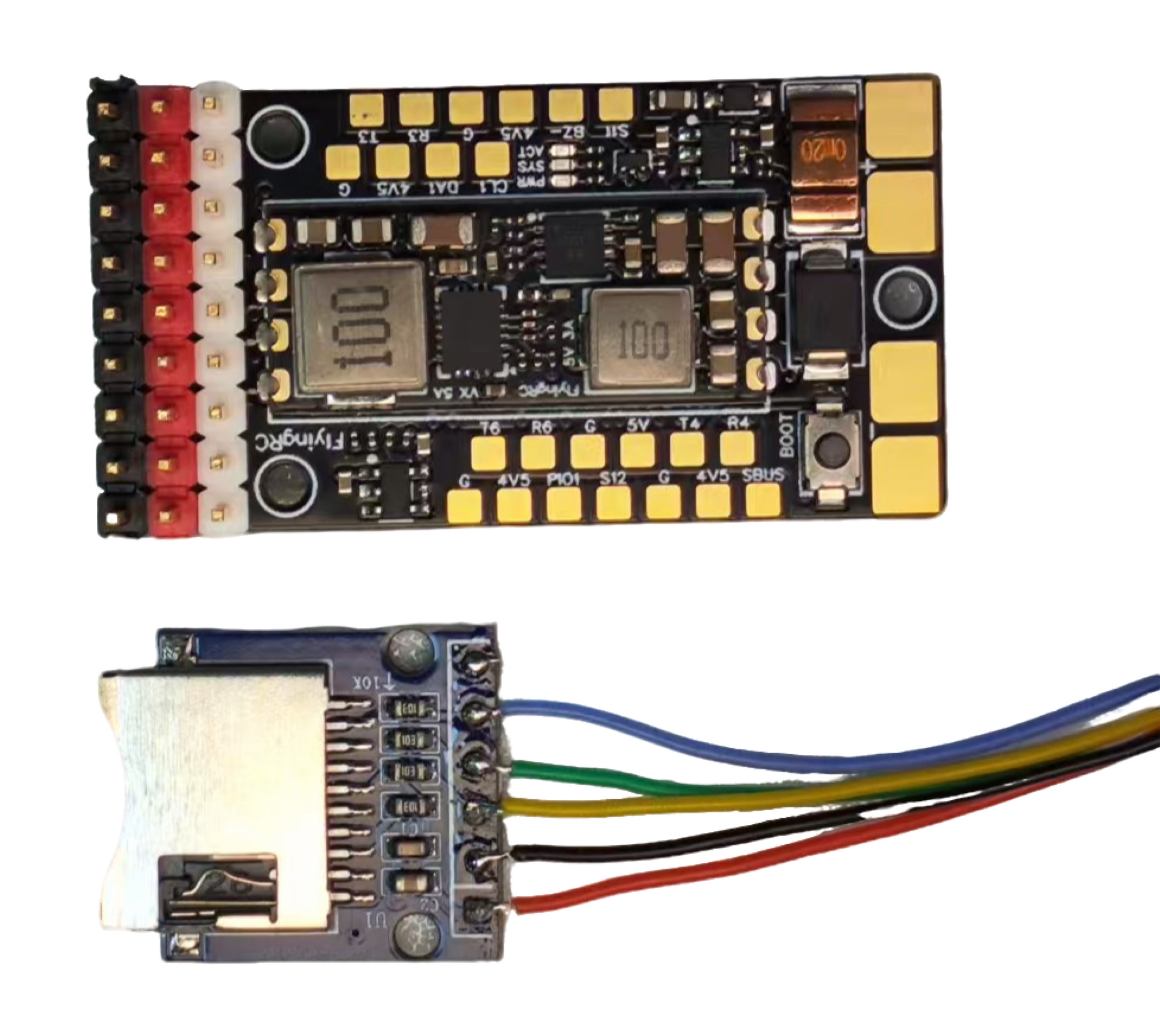

Advanced version soldered headers and TF board
